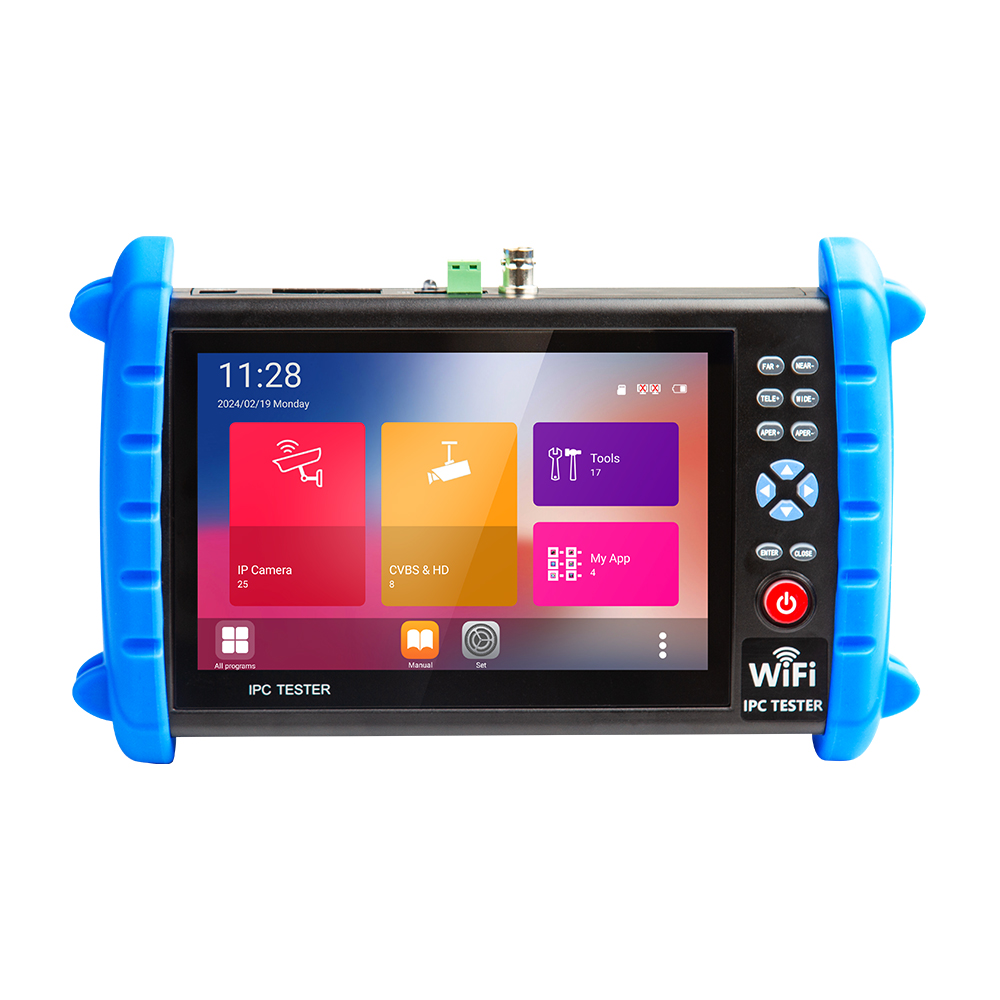

7 inch IPS touch screen 4K H.265 IP Full 4K All in One CCTV SecurityTester

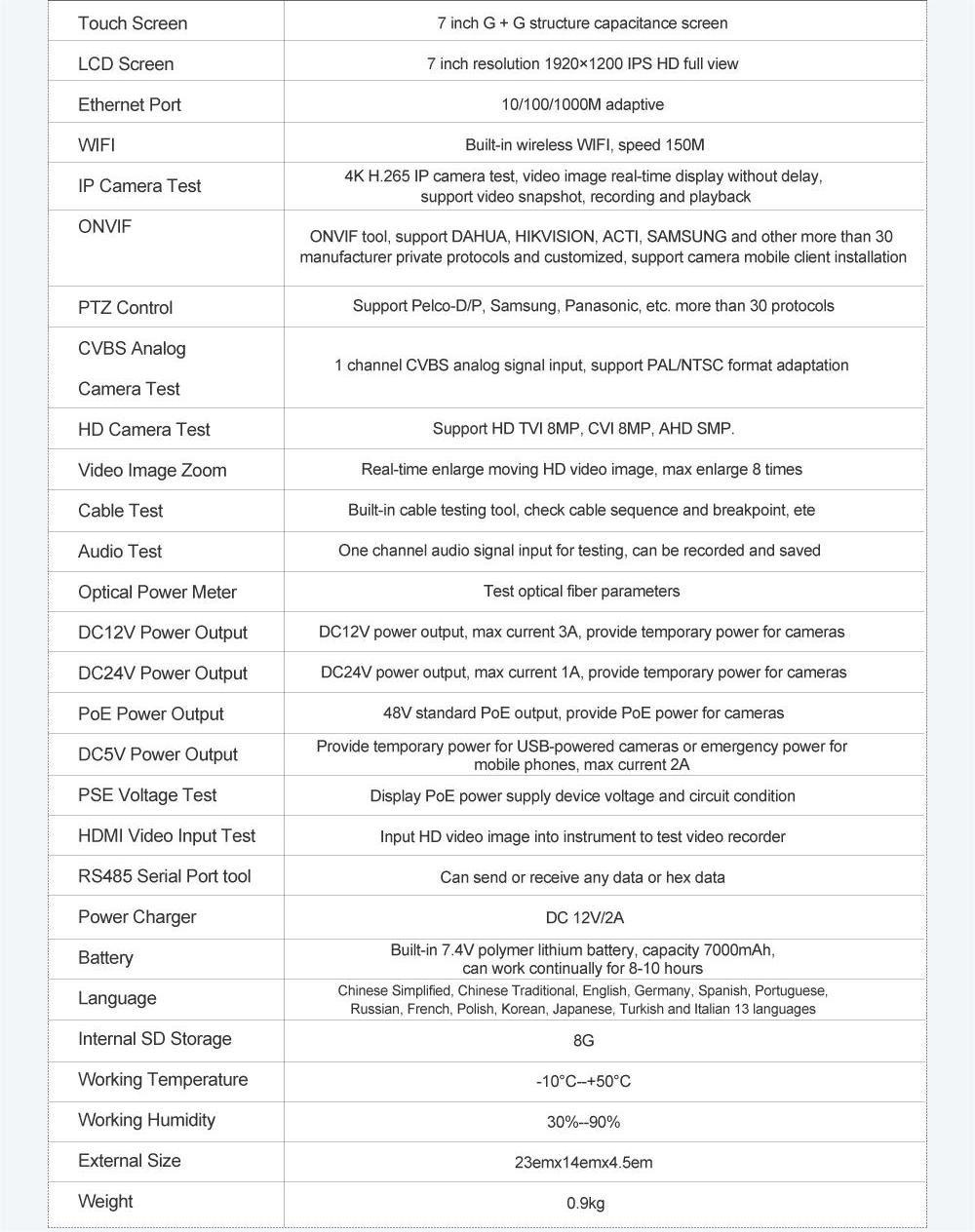

1) Touch Screen: 7 inch G+ G structure capacitance screen

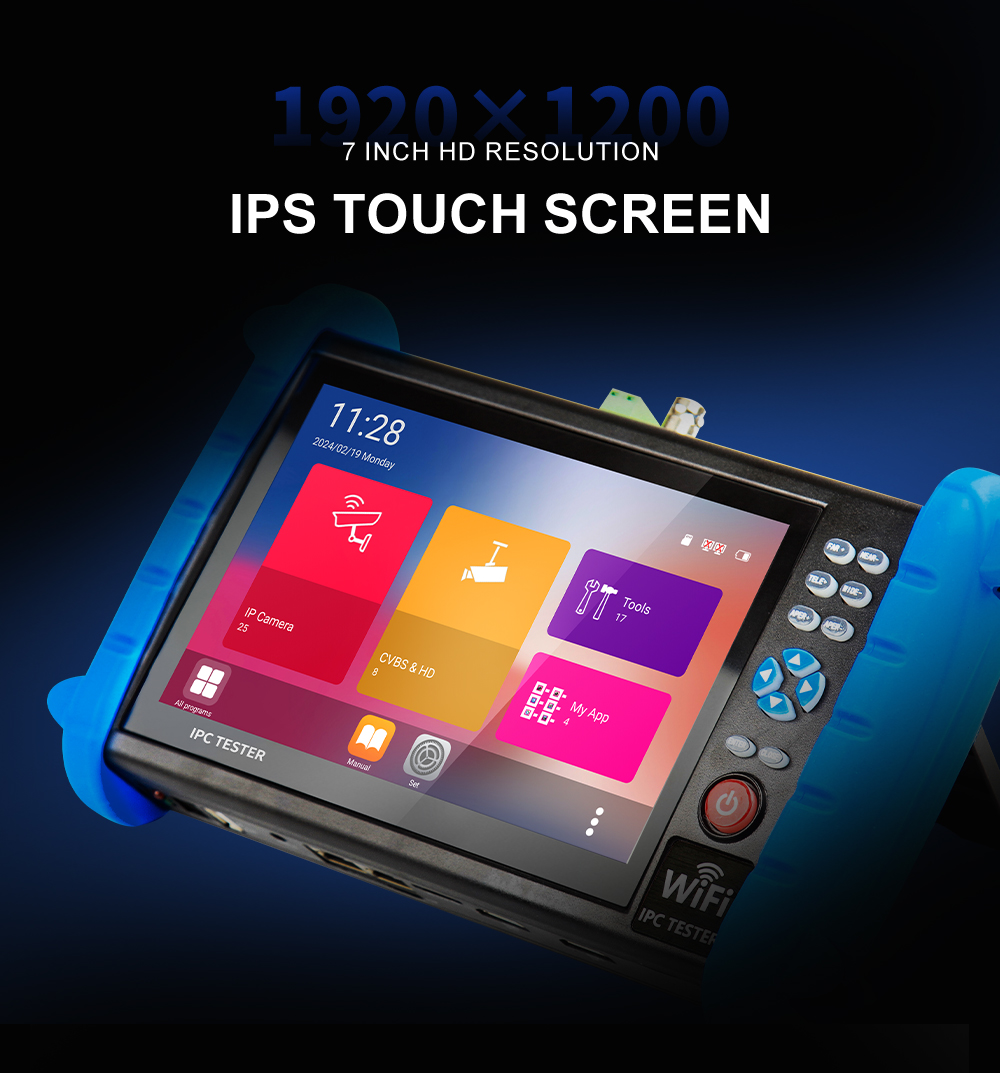

2) LCD Screen: 7 inch resolution 1920x1200 IPS HD full view

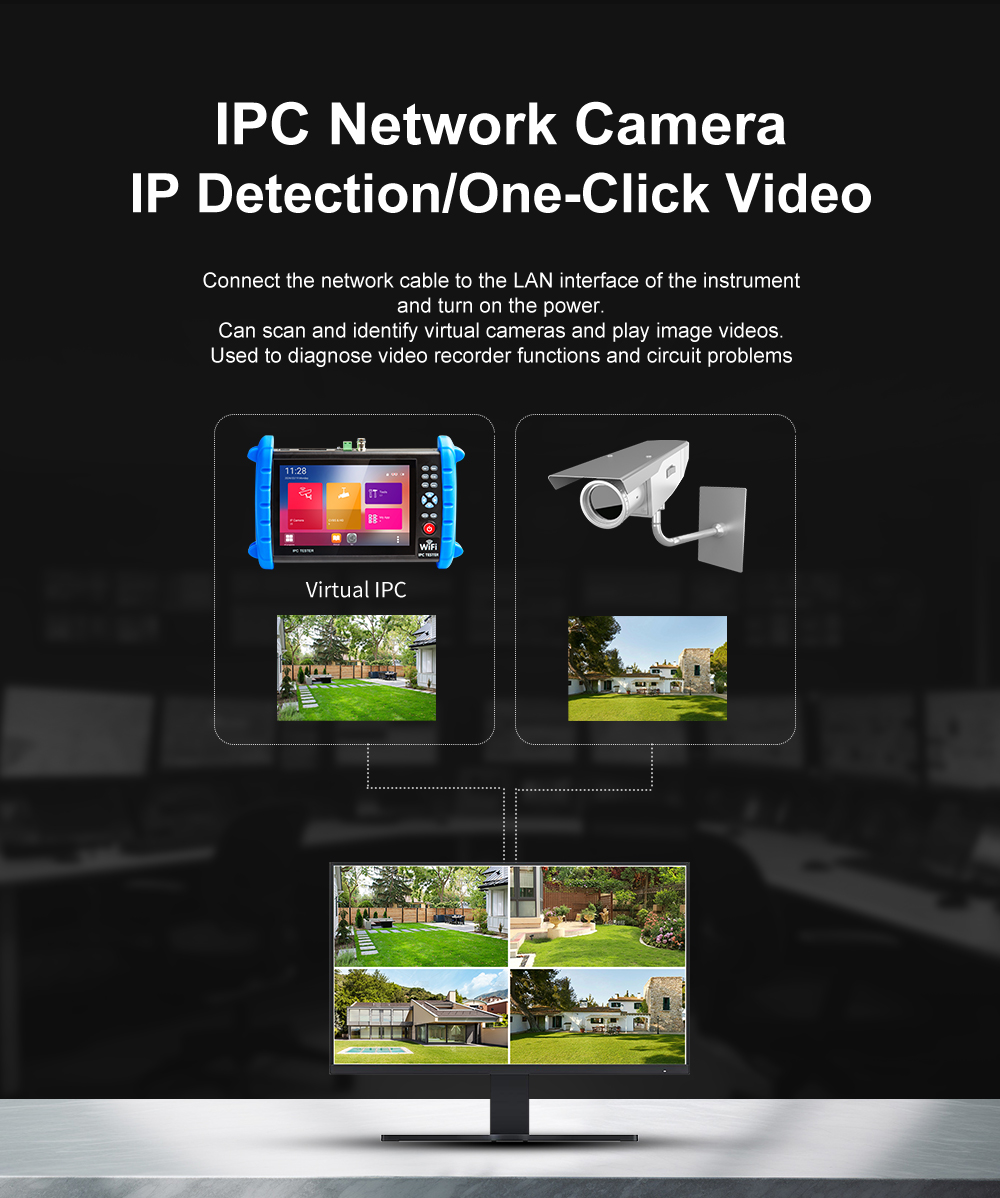

3) IP Camera Test: 4K H.265 IP camera test, video image real-time display without delay, support video snapshot, recording and playback

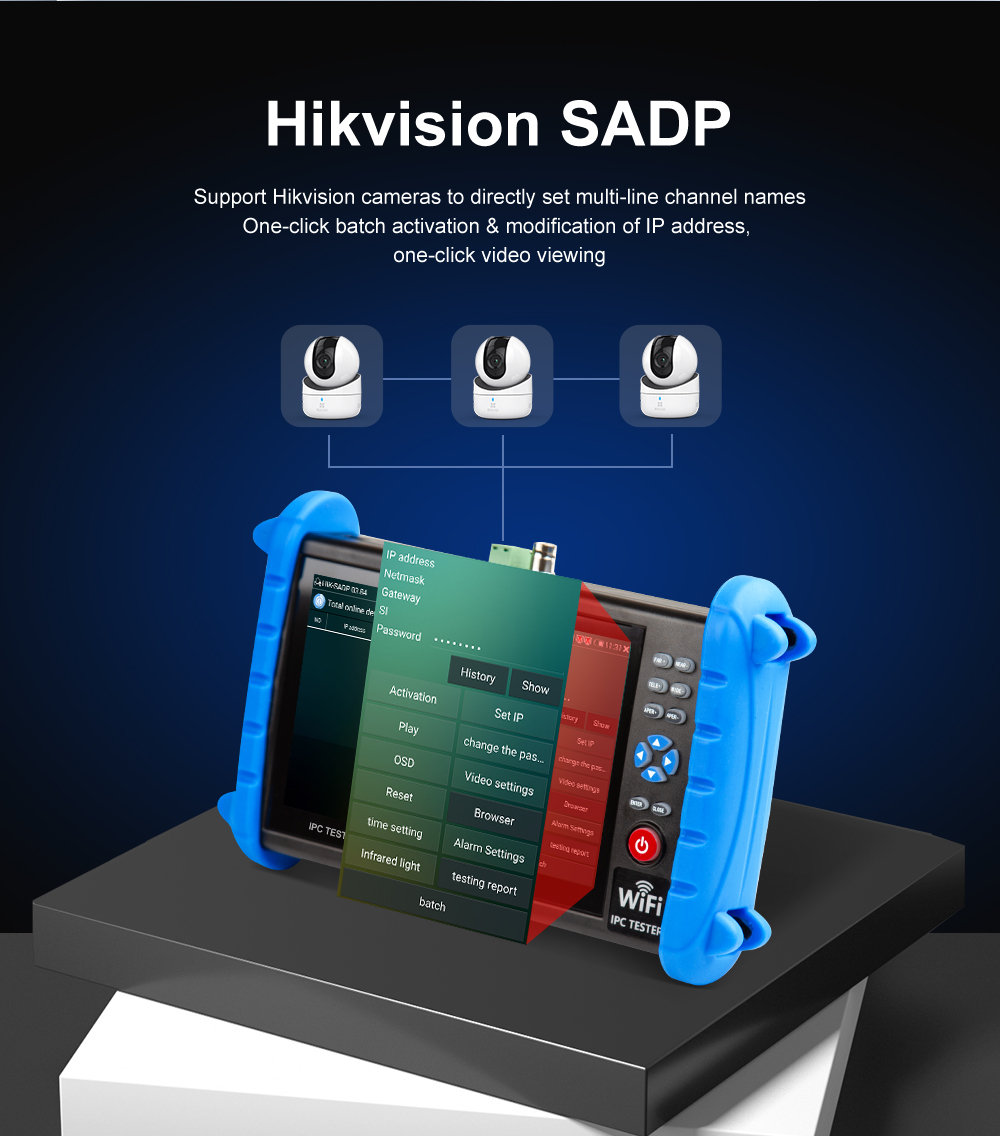

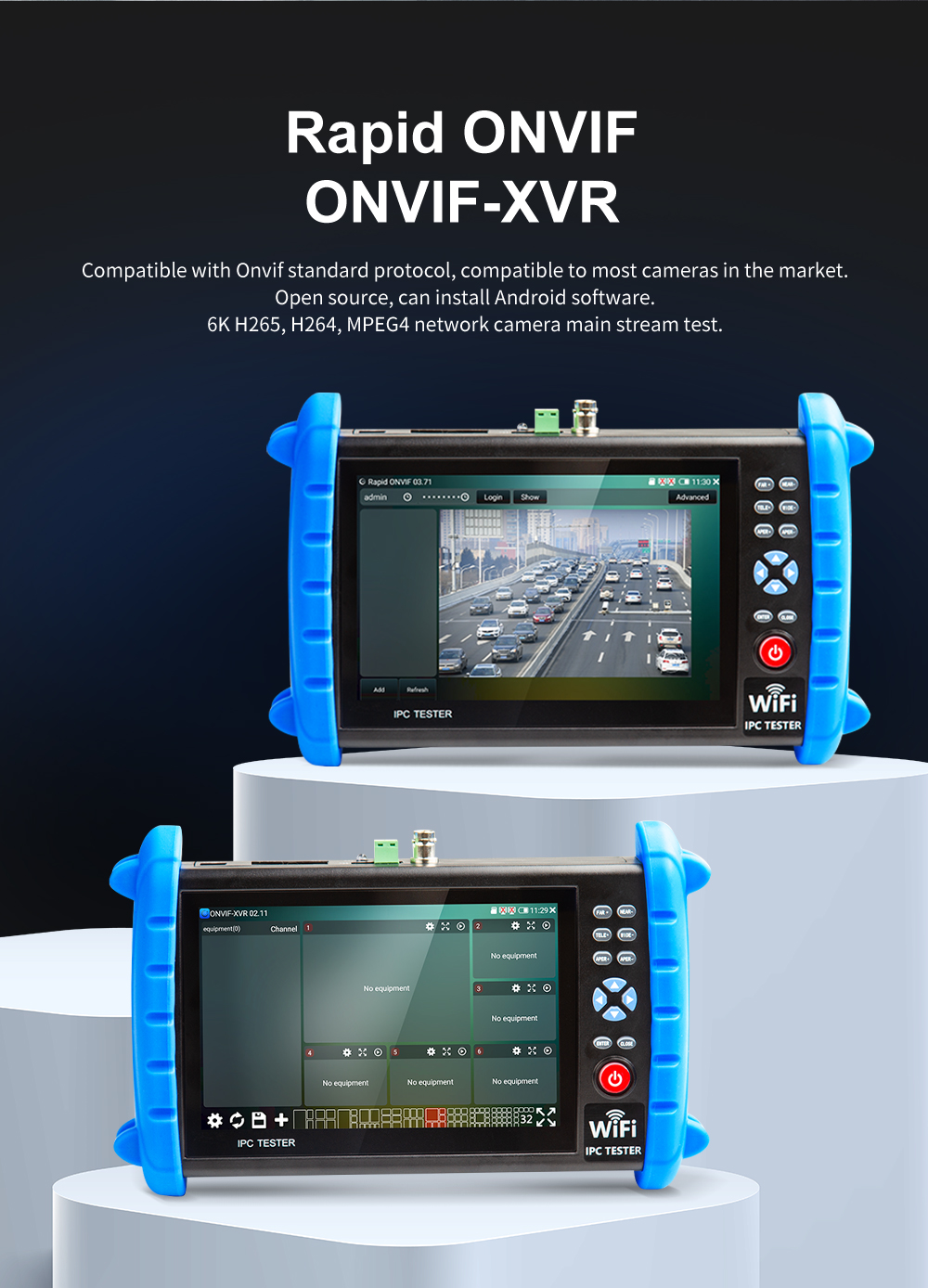

4) ONVIF: ONVIF tool, support DAHUA, HIKVISION, ACTI, SAMSUNG and other more than 30 manufacturer private protocols and customized, support camera mobile client installation

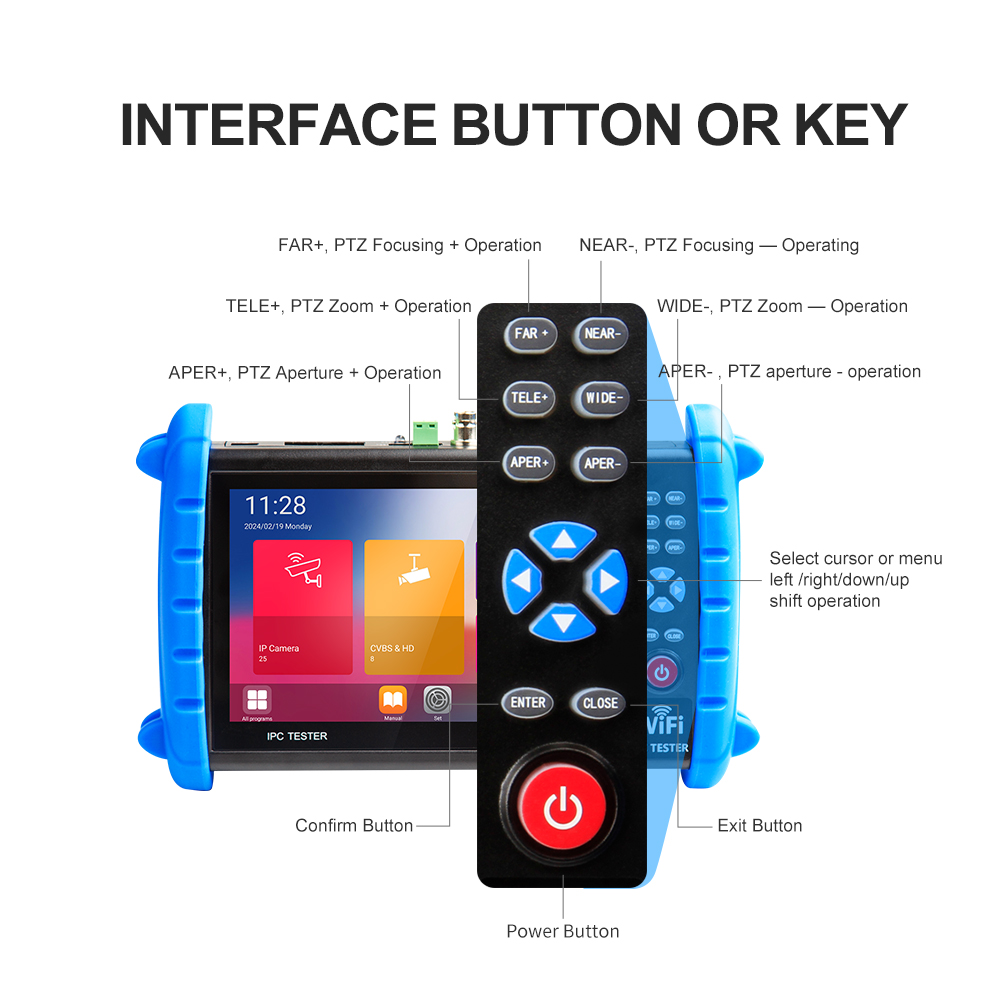

5) PTZ Control: Support Pelco-D/P, Samsung, Panasonic, etc. more than 30 protocols

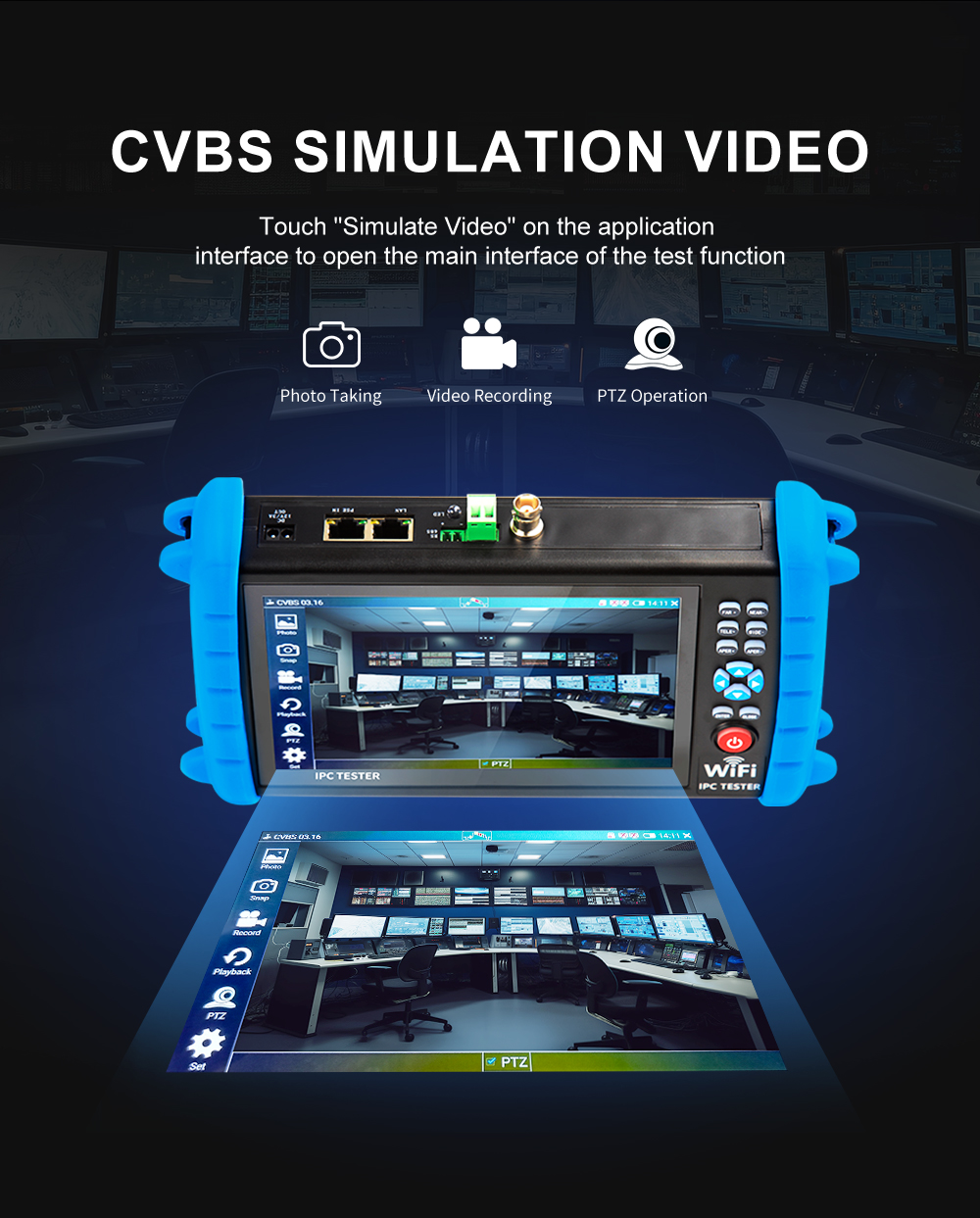

6) CVBS Analog Camera Test: 1 channel CVBS analog signal input, support PAL/NTSC format adaptation

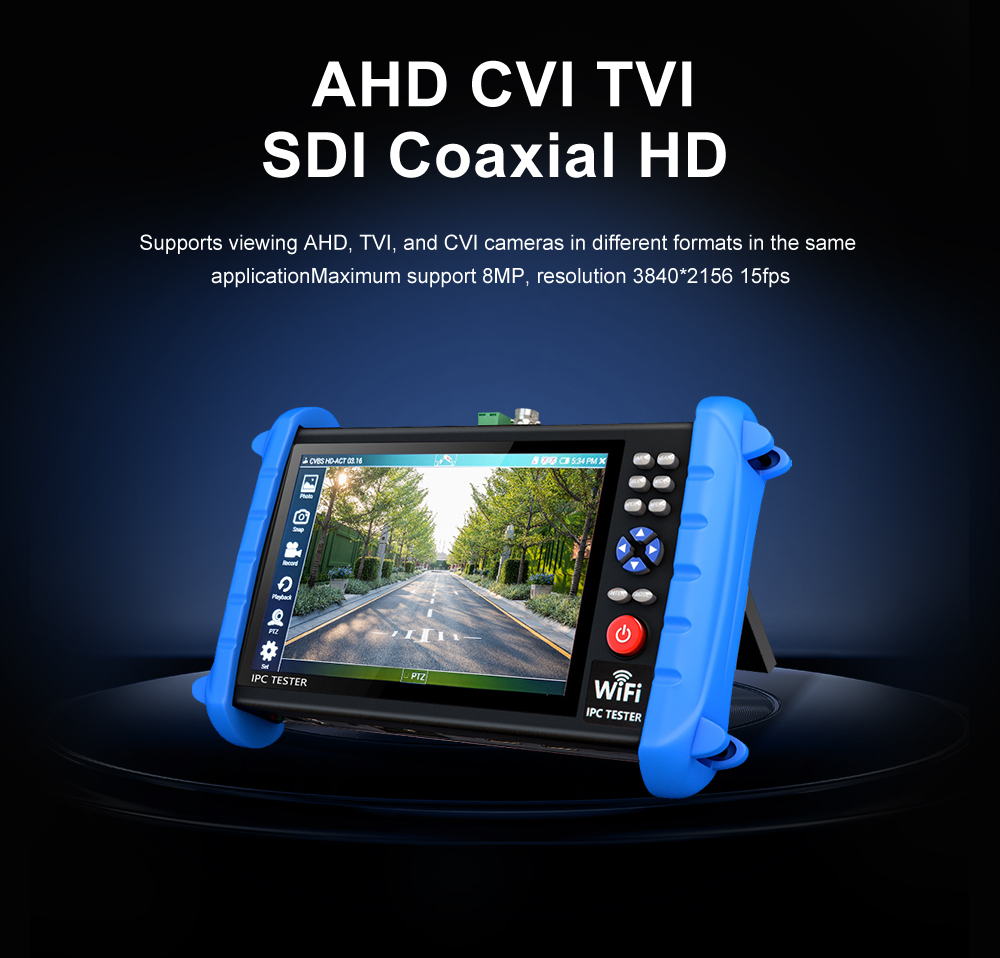

7) HD Camera Test: Support HD TVI 8MP, CVI 8MP, AHD SMP

8) Video Image Zoom: Real-time enlarge moving HD video image, max enlarge 8 times

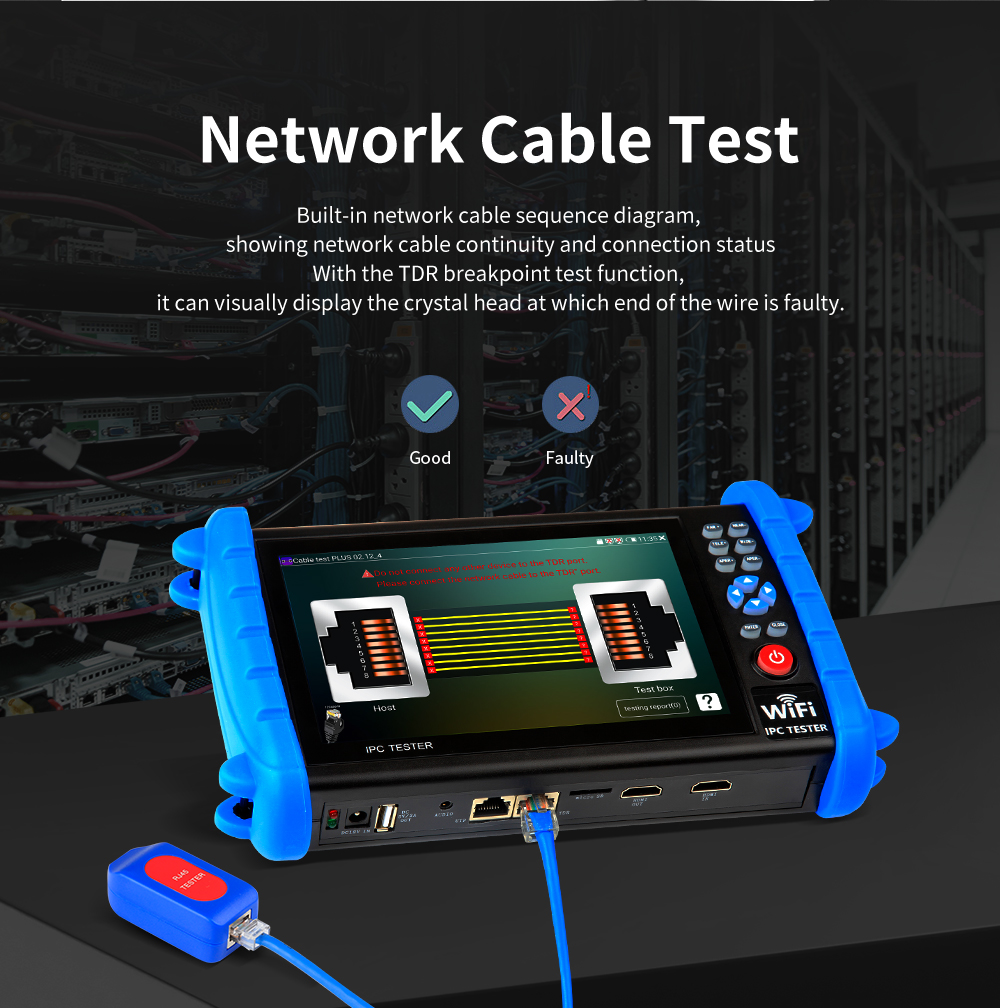

9) Cable Test: Built-in cable testing tool, check cable sequences and breakpoints, etc

10) Audio Test: One channel audio signal input for testing, can be recorded and saved
