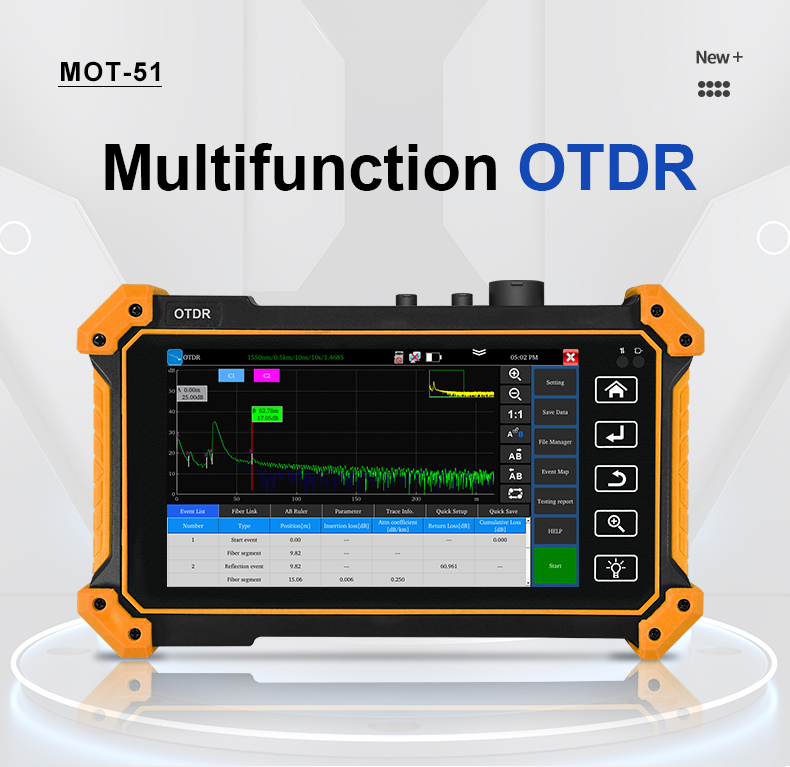

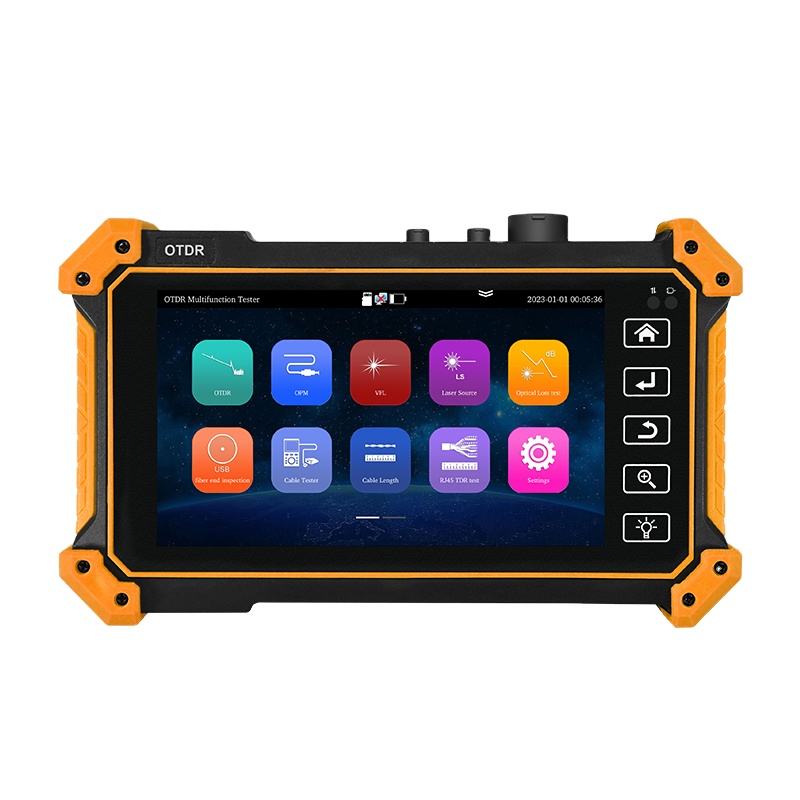

5.55 inch All-in-one OTDR MOT-50/51
OTDR:

- 5.55 inch OLED touch screen display, 1280*720 resolution

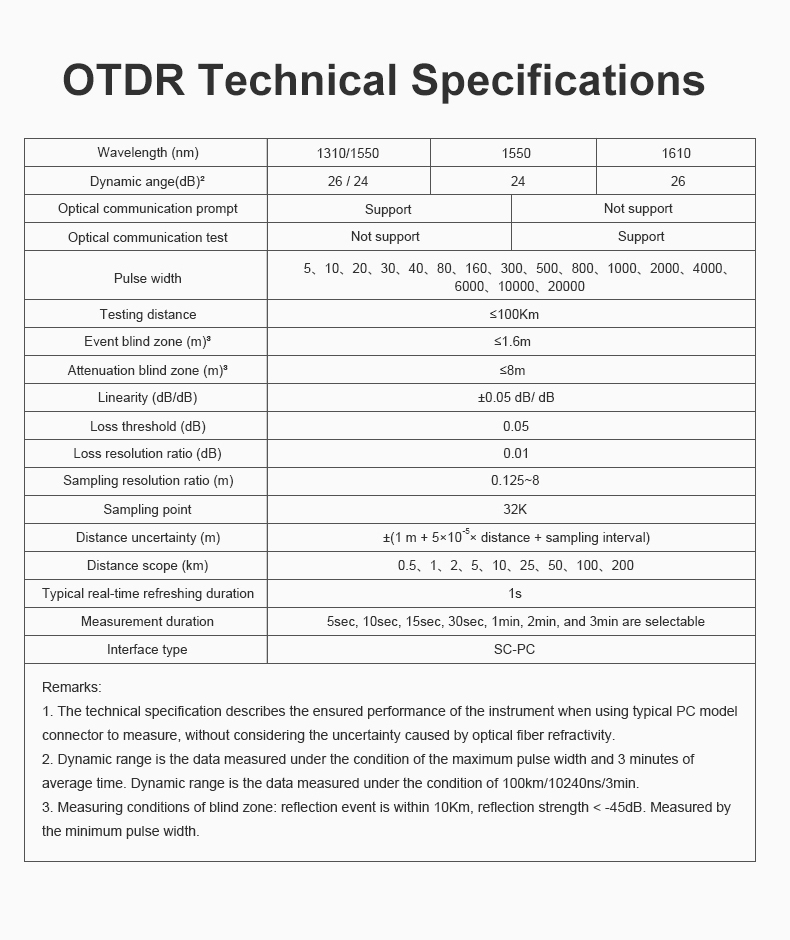

- 1310/1550/1610wavelength Optional, 26/24dB Dynamic range Optional*, max test range 100KM*

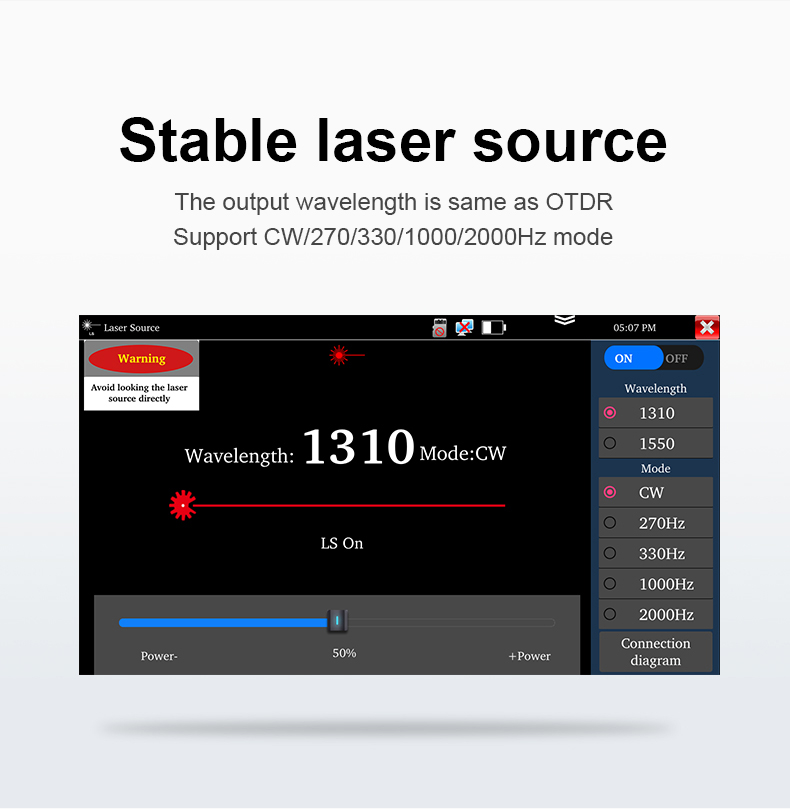

- Stable laser source, support CW/270/330/1000/2000Hz

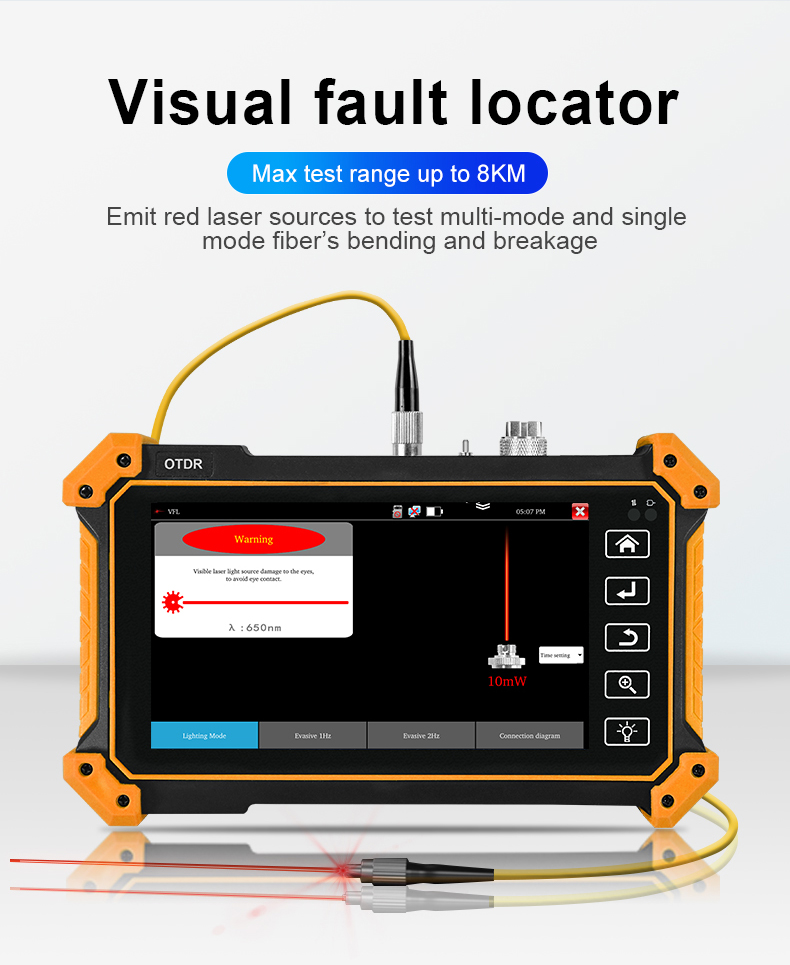

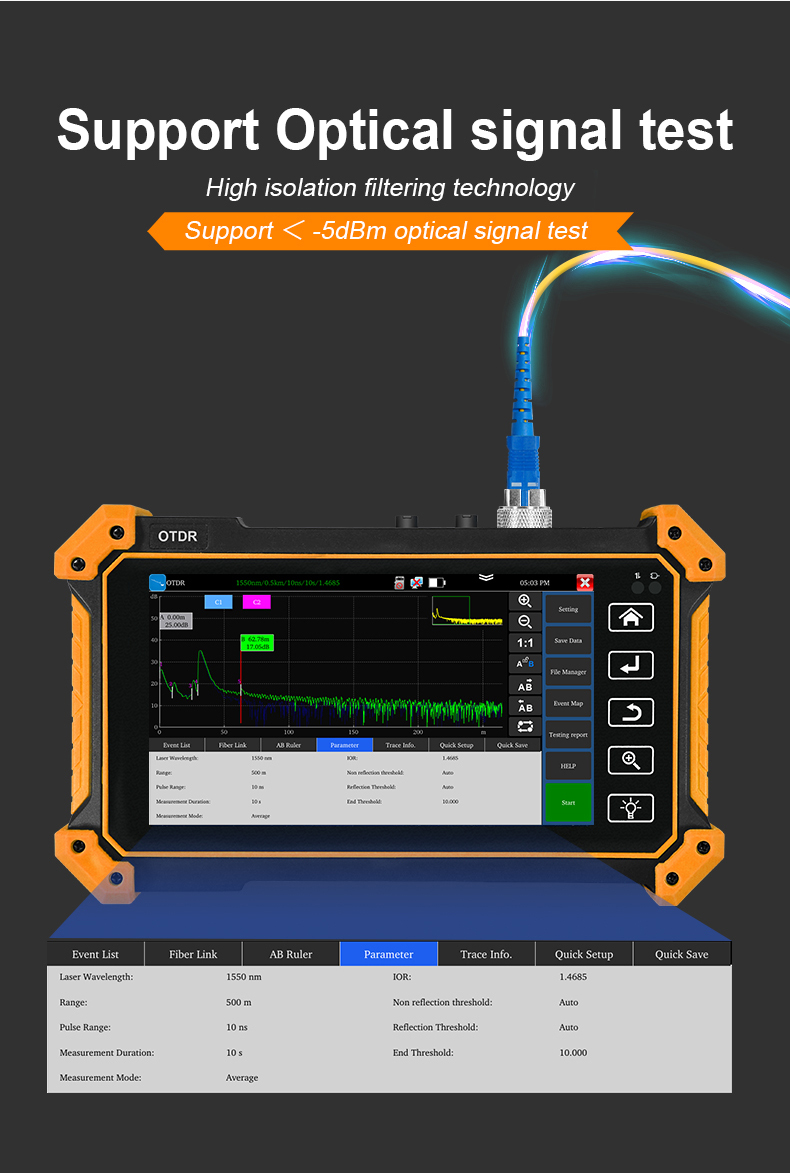

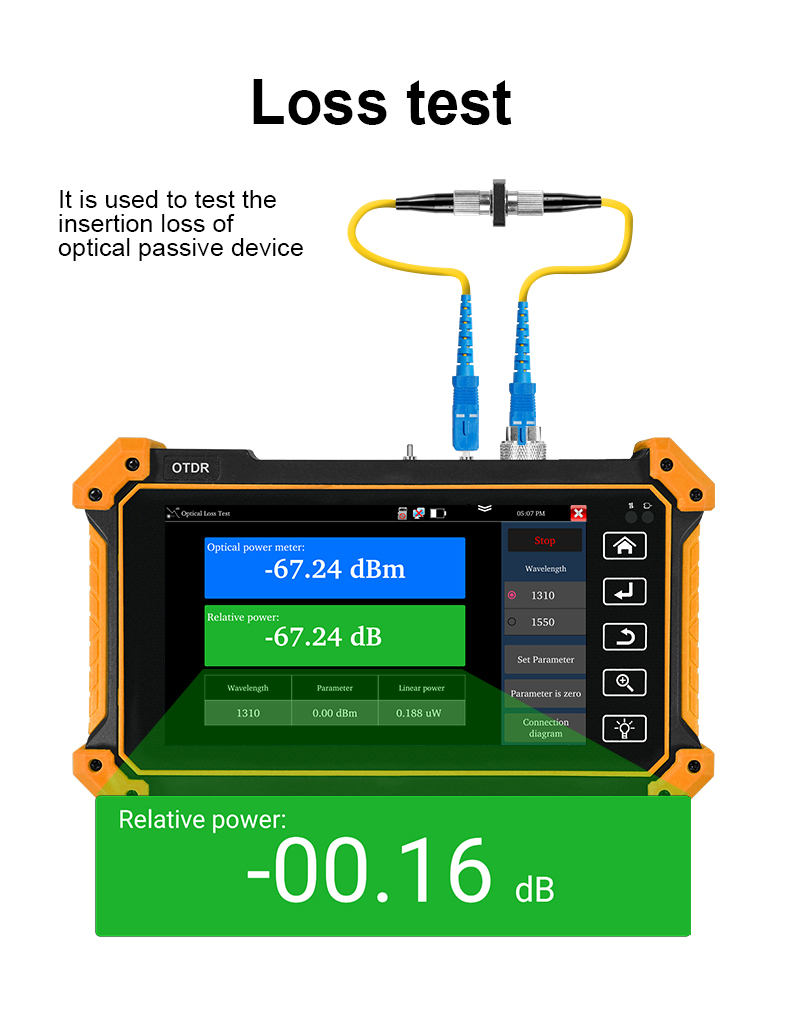

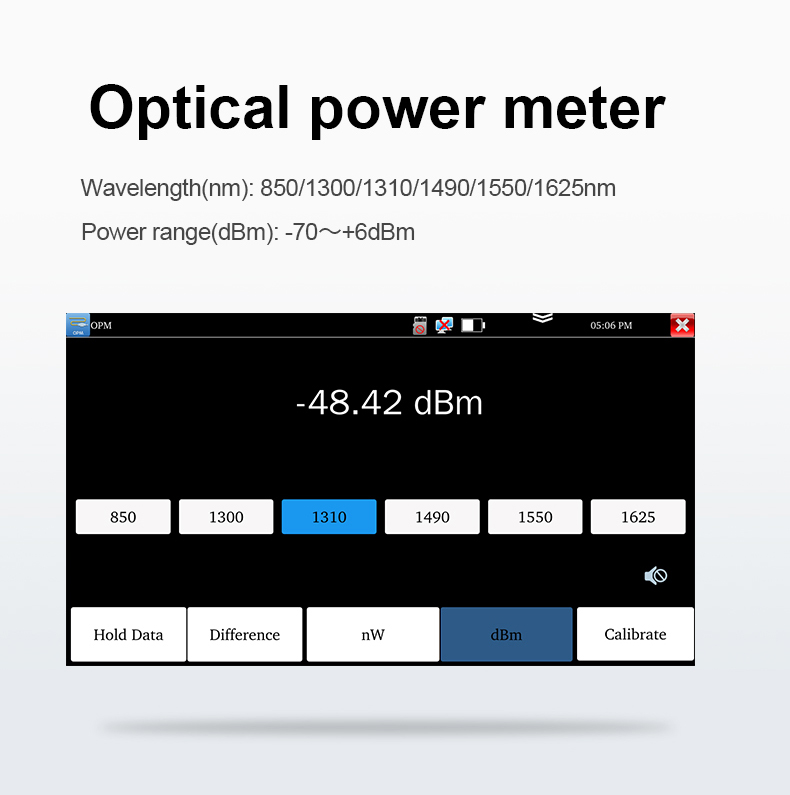

- Optical power meter and visual fault locator

- Test fiber’s length, loss, attenuation parameters and event map, locate connection point/ fusion point

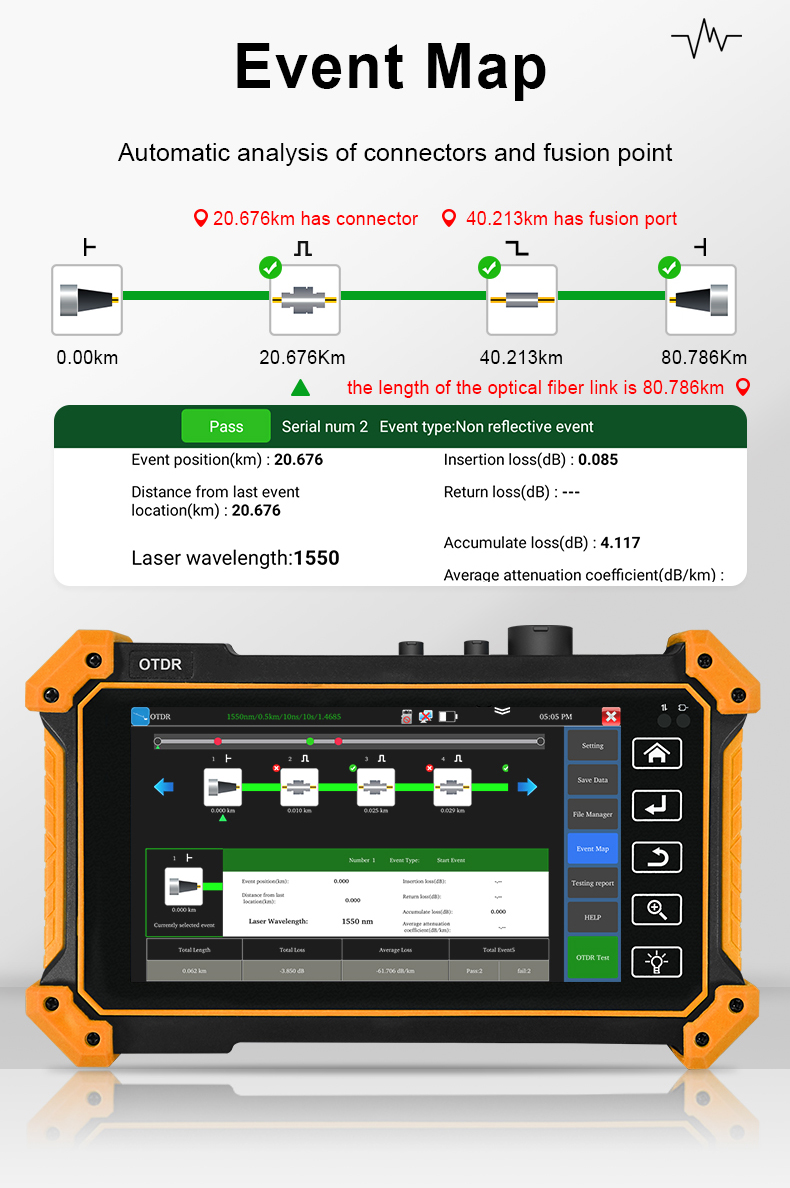

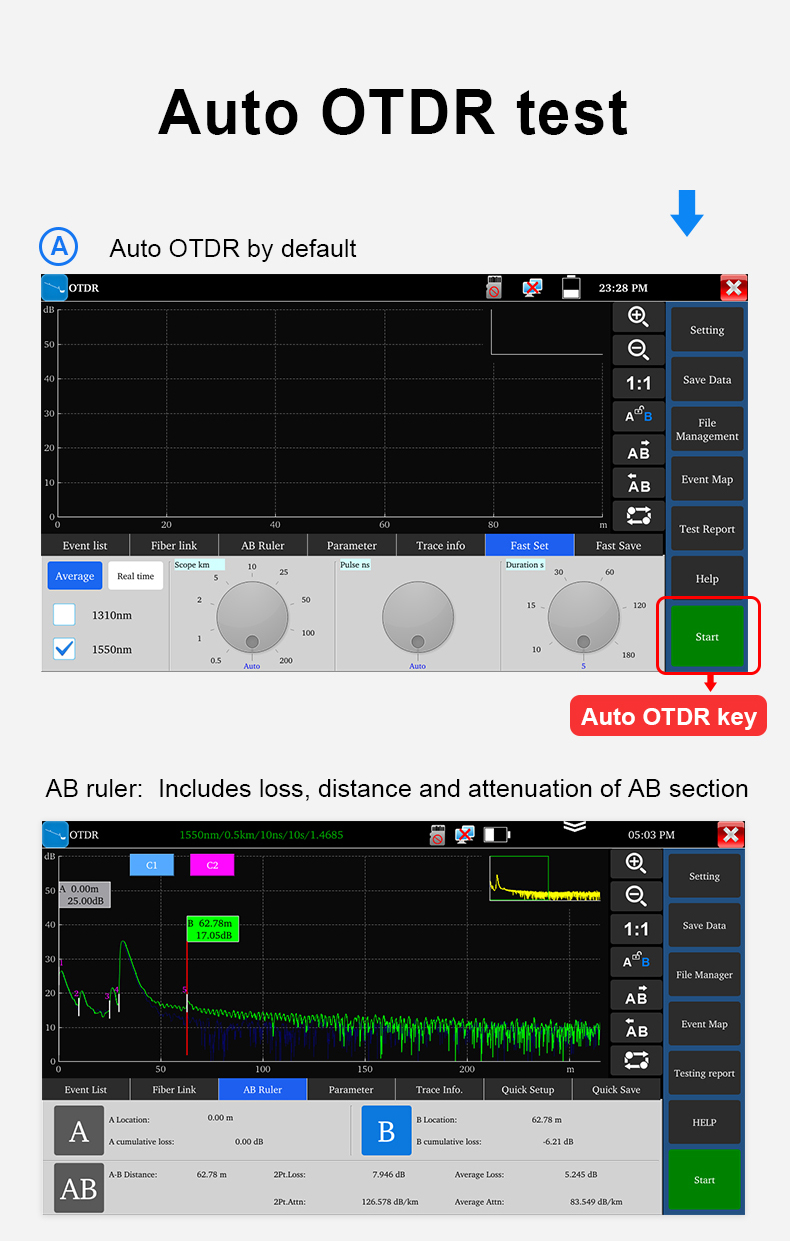

- Automatic analysis of various linkers/fusion points, easy analyze of various events

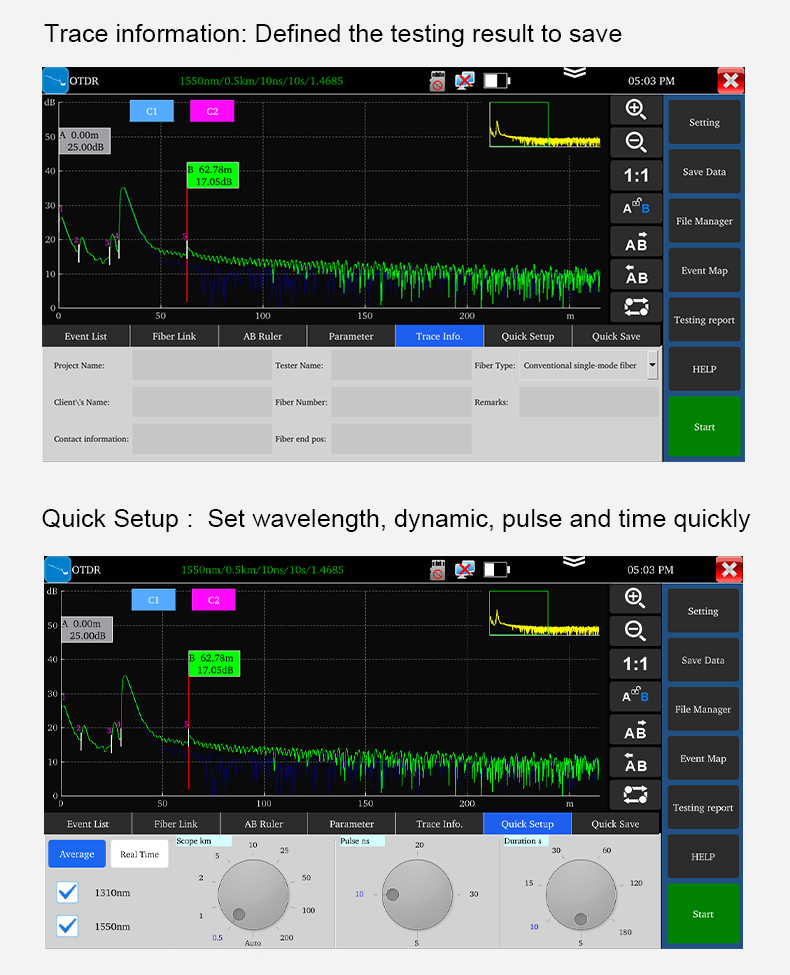

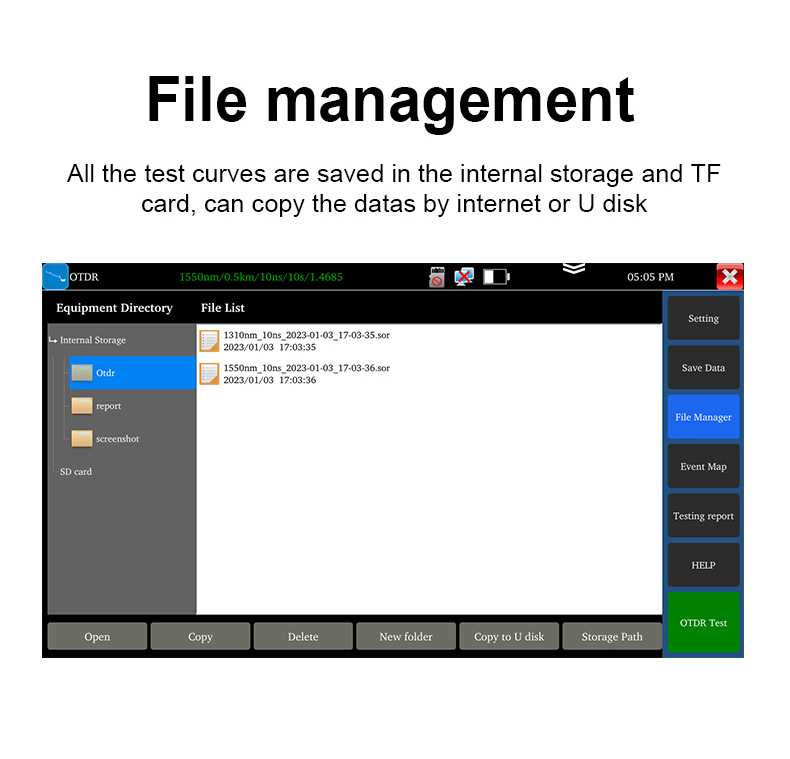

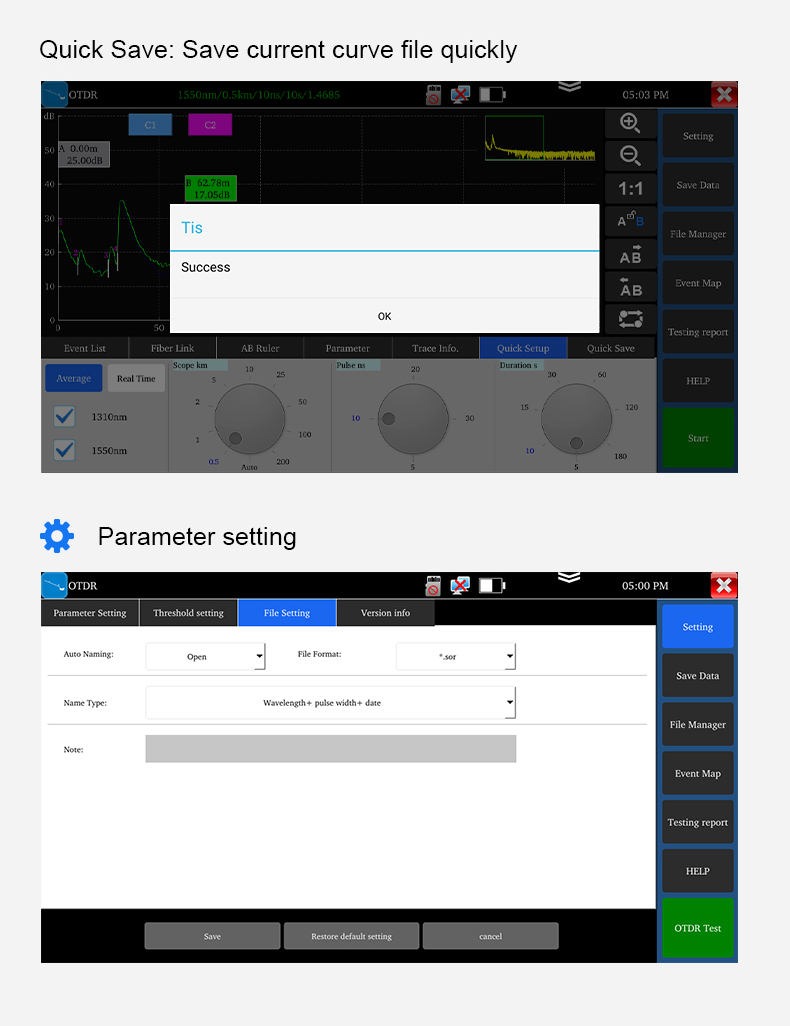

- Save and view the testing curves, support zoom and move curves, view details.

- Support saving curves number ≥30000pcs

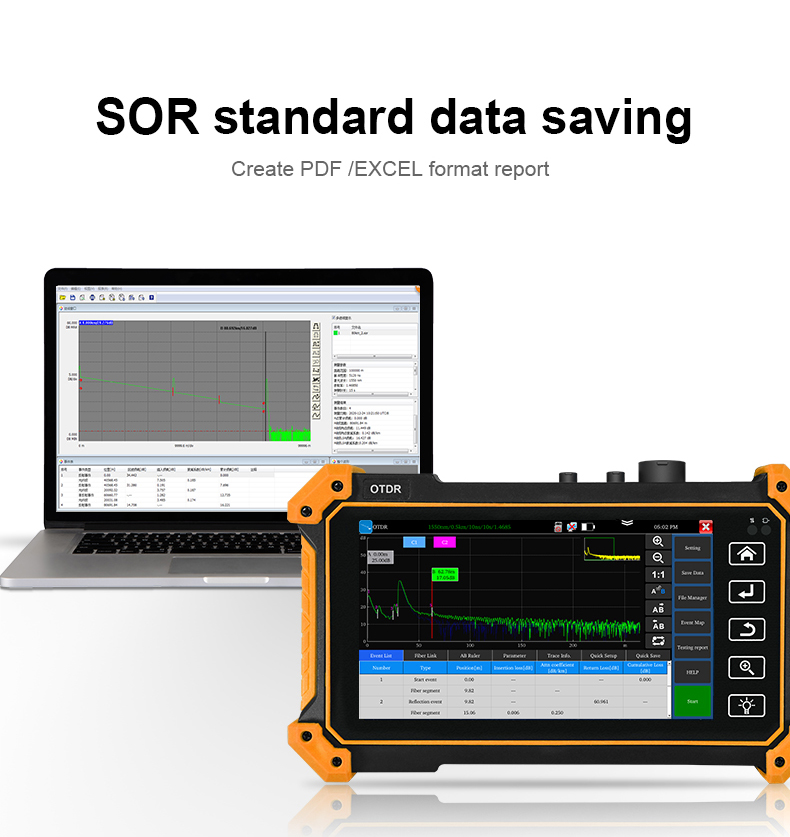

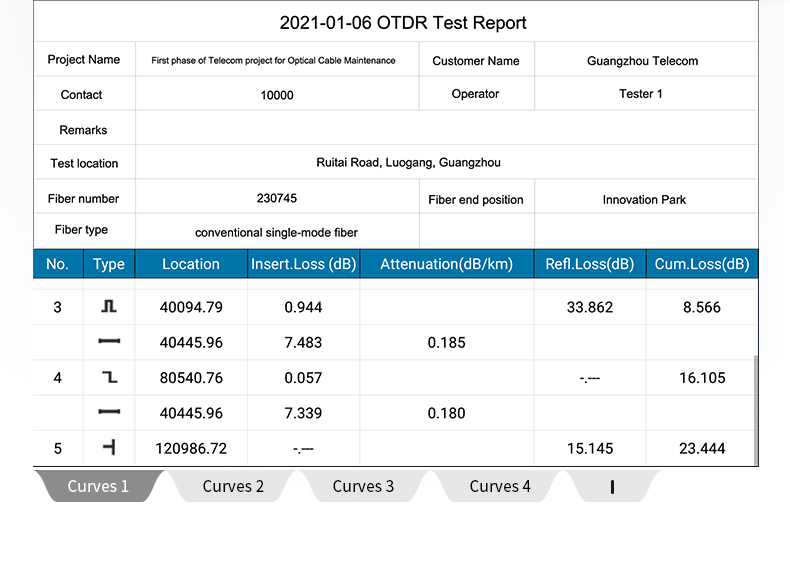

- Support create testing report, including curve trajectory graphs, parameter settings, fiber event information, and fiber link information. Report saved as EXCEL, PDF, or screenshots format etc

Cable test:

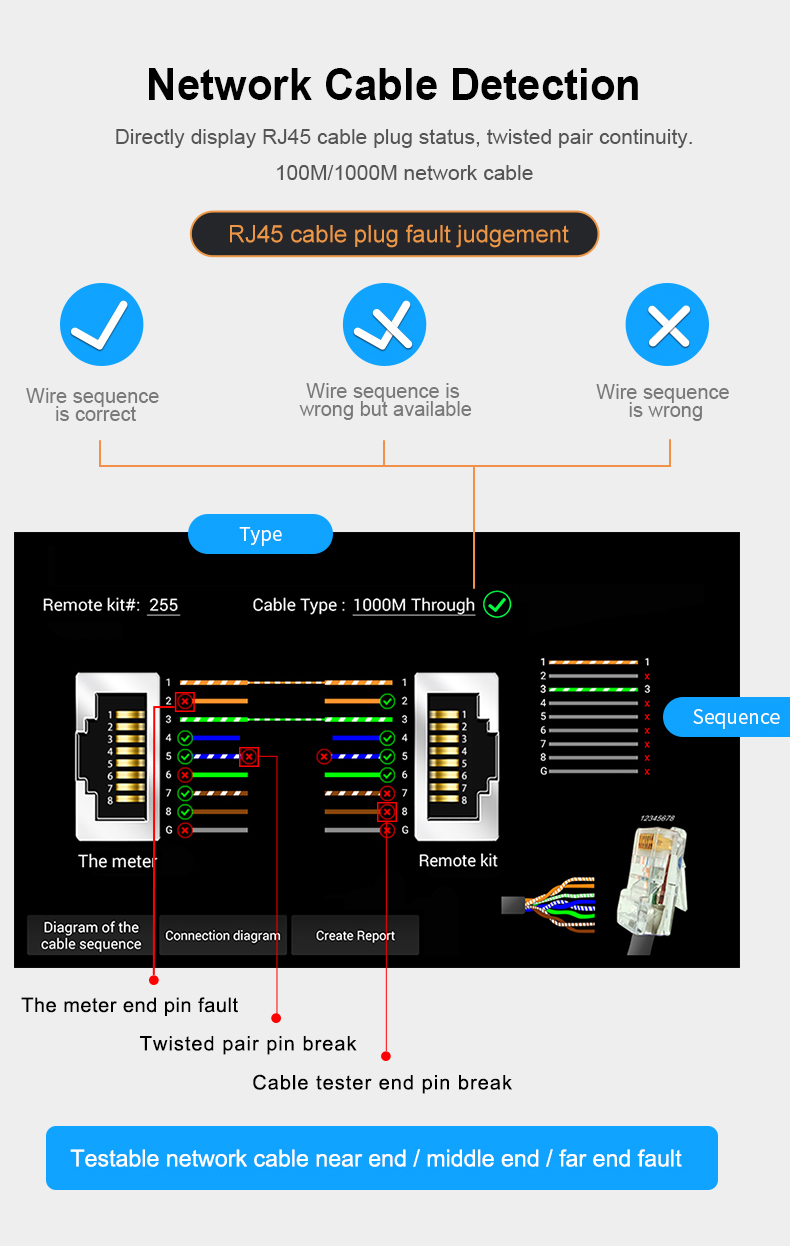

- Improvement cable tester, UTP cable, telephone cable etc sequence and continuity test, save testing report. Support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

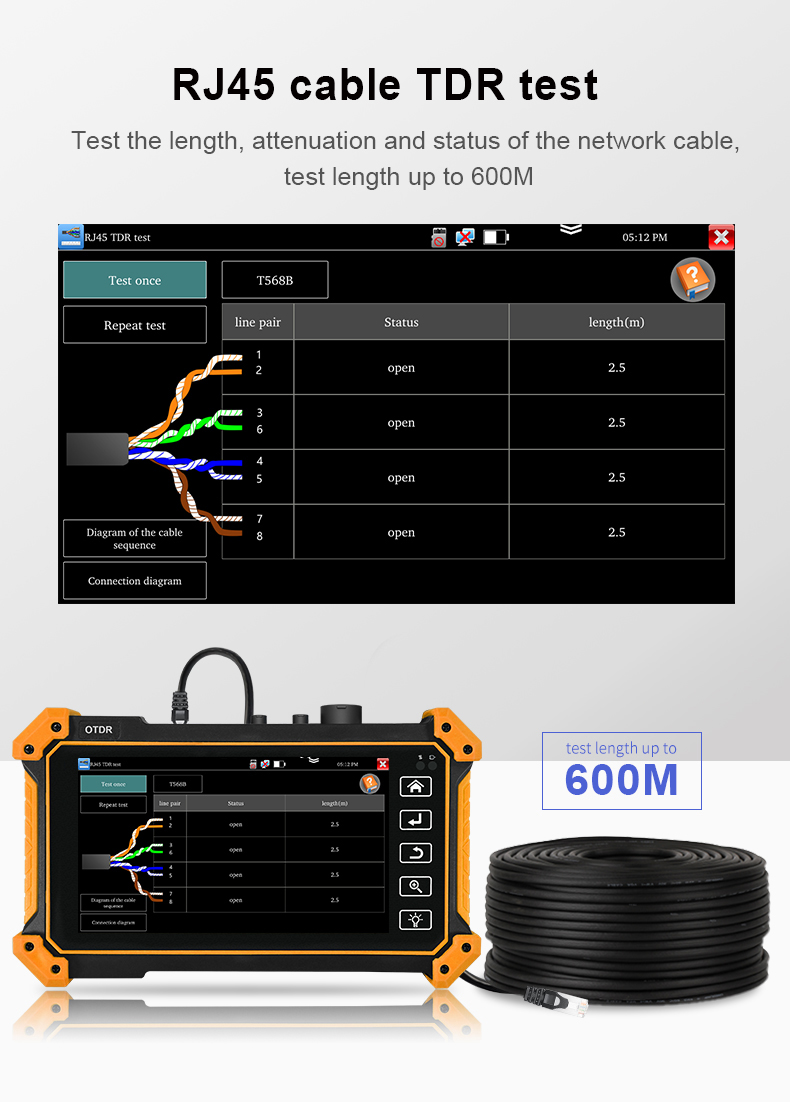

- RJ45 cable TDR test, test cable pair status and length, max test 600M

- Cable length, BNC cable, network cable, telephone cable, RVV cable, elevator cable, and cat 5/6 cable’s length test. Max measurement for cable’s open is 1.5KM

- 3.7V 4000mA Li-ion Battery, 3.5 hours charging, normal working time lasts 6 hours

Addtional function:

- USB 5V 1A power output, as the power bank

- FTP server and online update

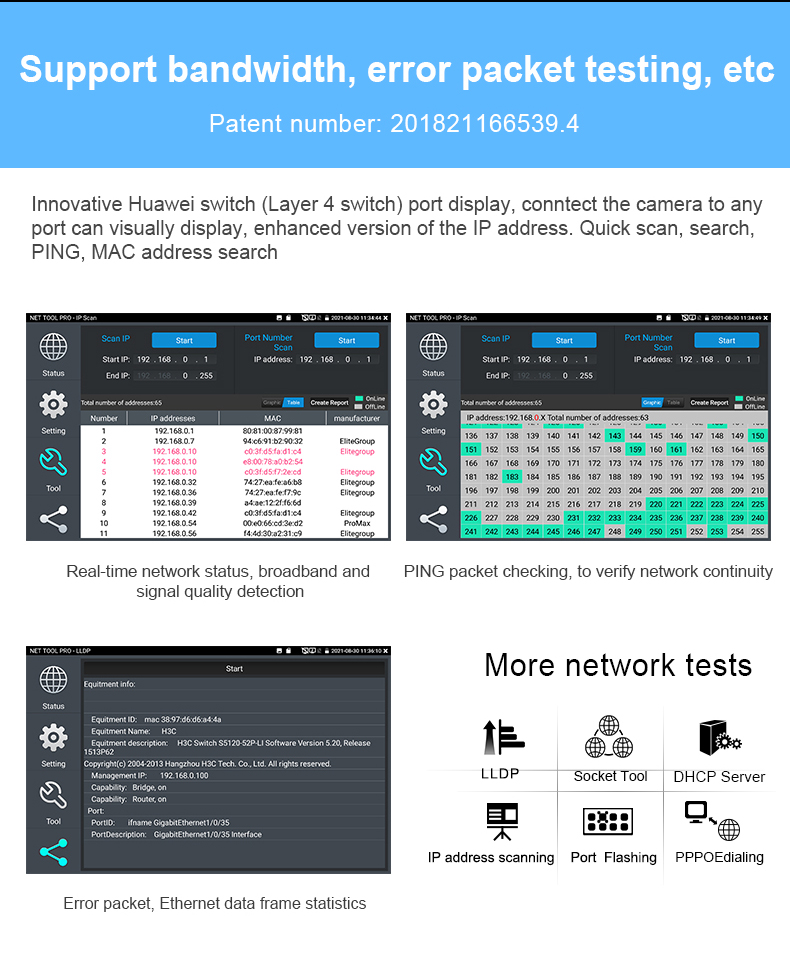

- PING test, PPPOE, IP scan, port flashing etc network test
