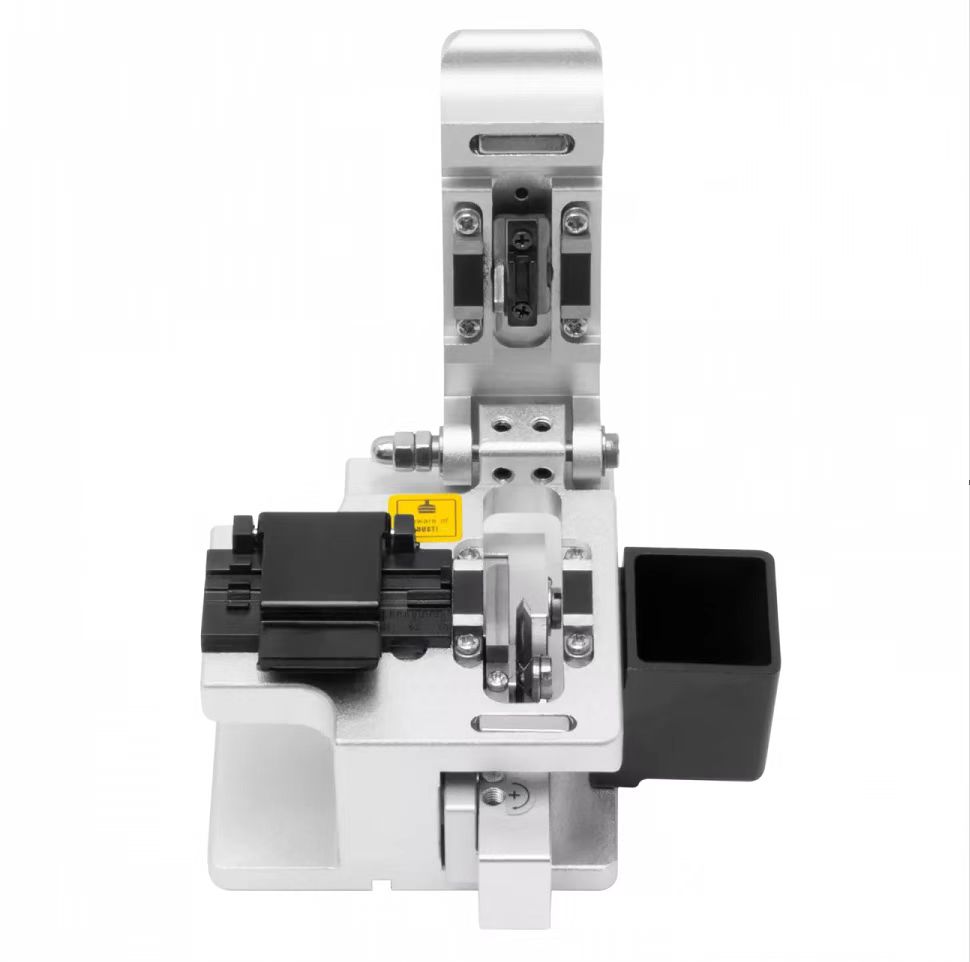

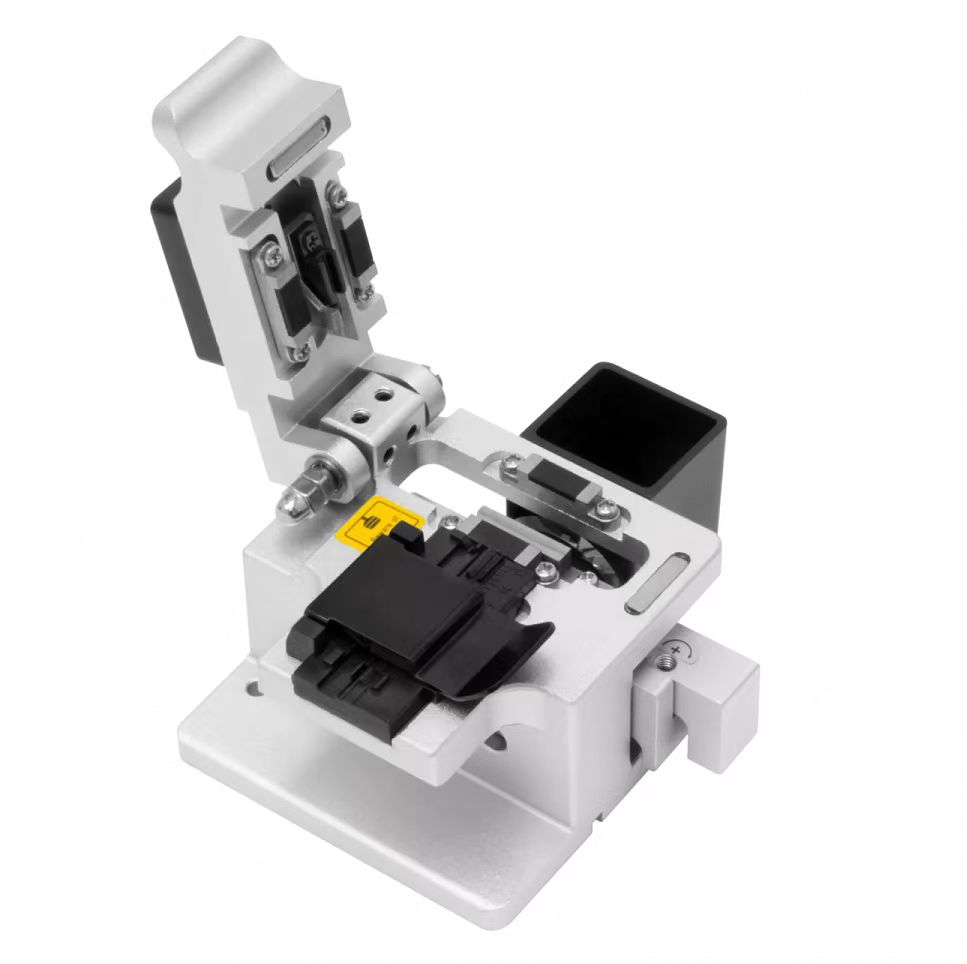

Fiber Cleaver with Auto-Rolling Blade

Key Features:

·       Automatic rotate of blade, one step to finish; Easy-step operation, High-efficiency;

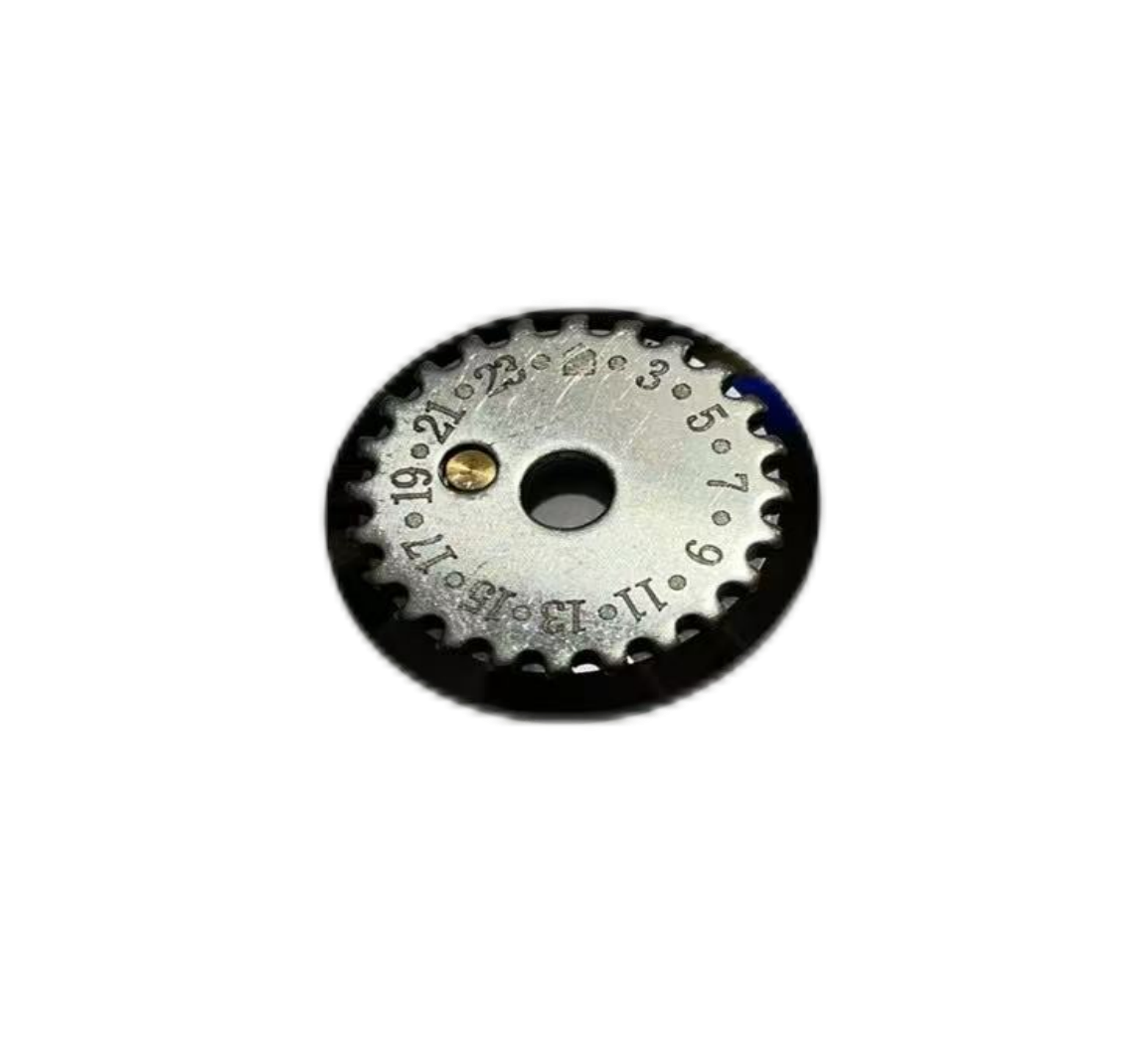

·       Auto rotate Blade lifetime up to 2000 times each point,24 cutting point,blade life time up to 48000times;

·       Precise cleaved surfaces; Smooth cleaving angle around 0.5 degree

·       Smart anti-fiber breakage design preventing the fiber from damage by the return of blade carriage;

·       With fiber waste bin to collect the waste fiber shards.

·       Main Body is aluminum material; Blade magnesium alloy materials


Model

FC-09 AUTO

Blade Rotate

Automatic

Cleave Angle

≤0.5°

Cleave Length

0.25mm fiber:9~16mm

0.9mm fiber:10~16mm

Fiber Diameter

125μm

Coating   Diameter

0.25&0.9mm

Size

63W×56D×56H(mm)

Weight

300g

Blade Life   Time

Around 48000 fibers

Blade Point

24 point

Scrap   Collector Bin

Yes

Operating   Temp.

-40-80 ℃
