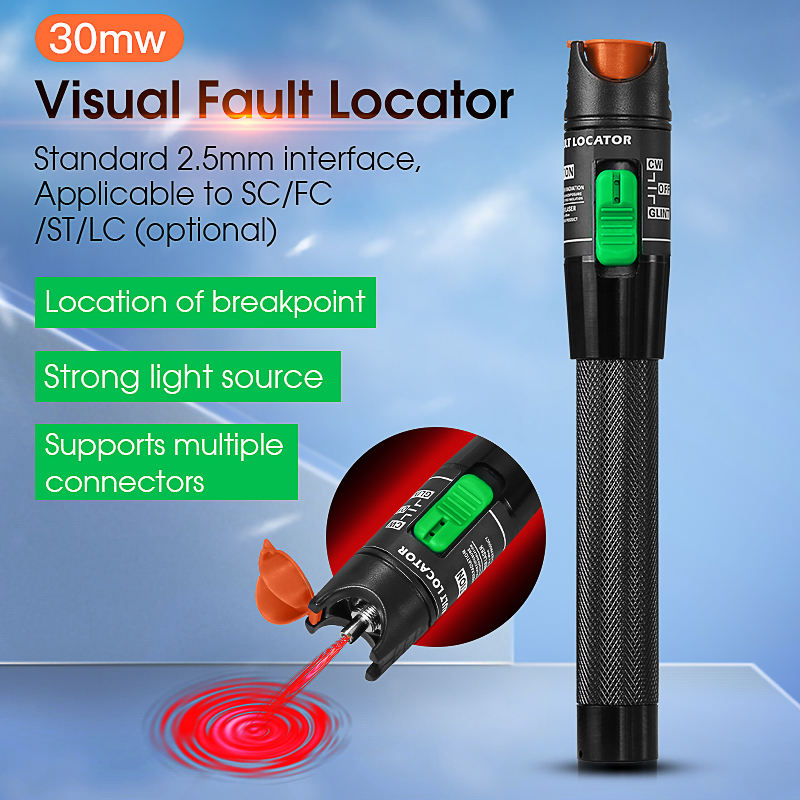

Visual Fault Locator HT-xx Series
VFL are compact but powerful Visual Fault Locator, be used to locate sharp bends & breaks in jacked or bare fiber. It could also be used to identify the connectors in patch panels and identify the fibers during splicing operation.
Main Features：
1. Locating the fault of fiber breakage, winding and so on.
2. End-to-end fiber recognition.

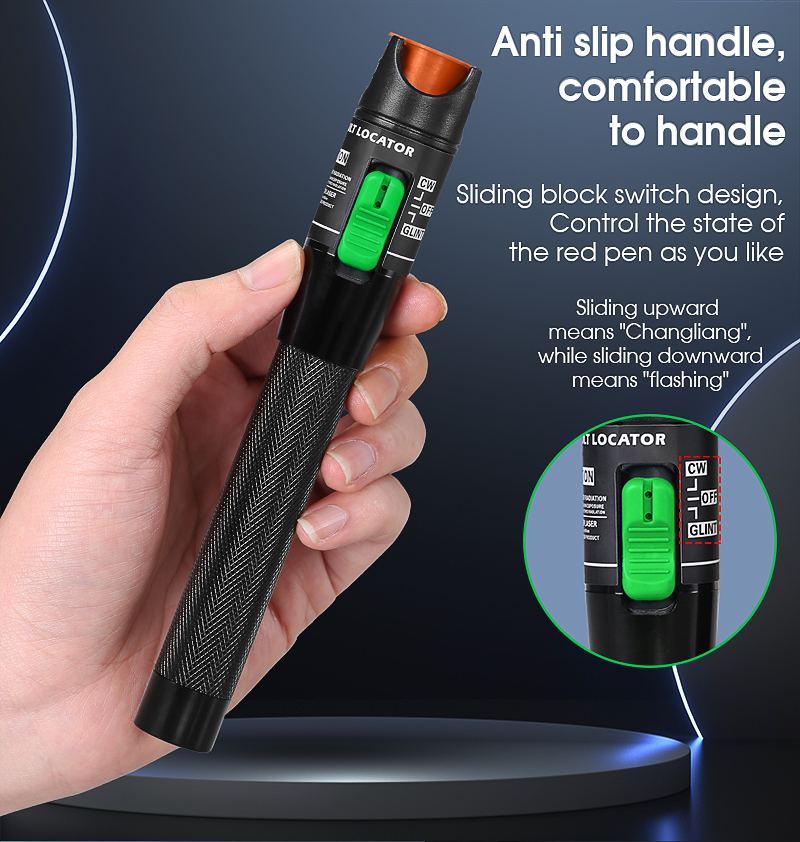

3. Pulsed and CW operation

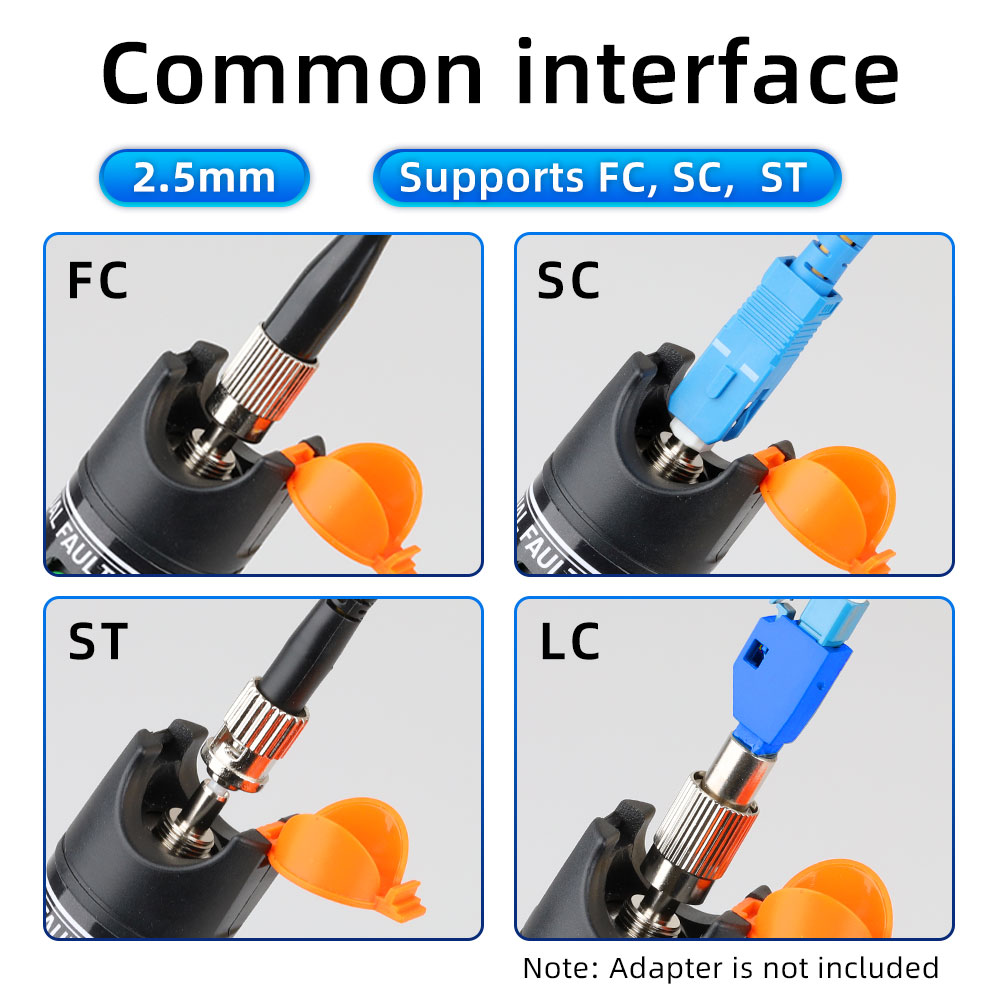

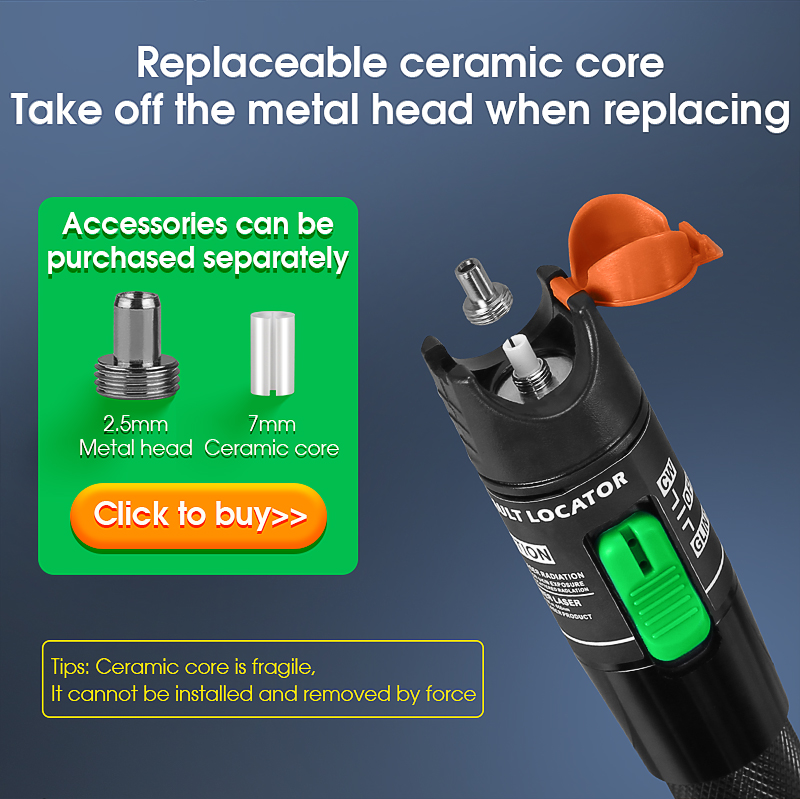

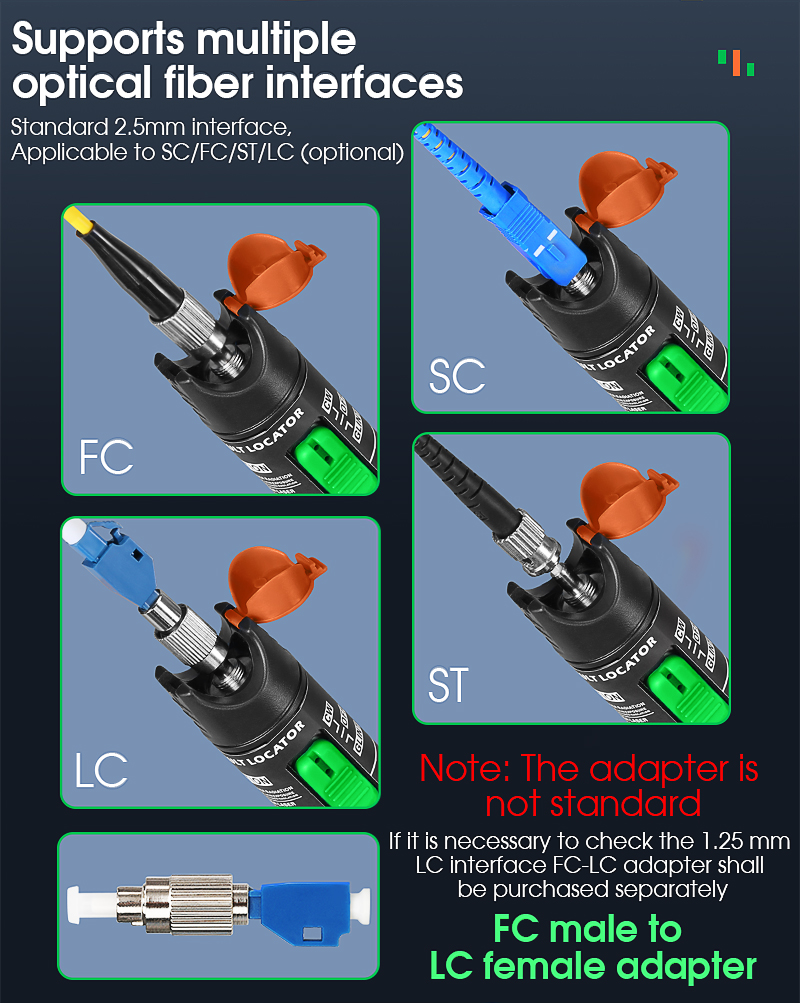

4. 2.5mm universal connector
5. Rugged and weatherproof design

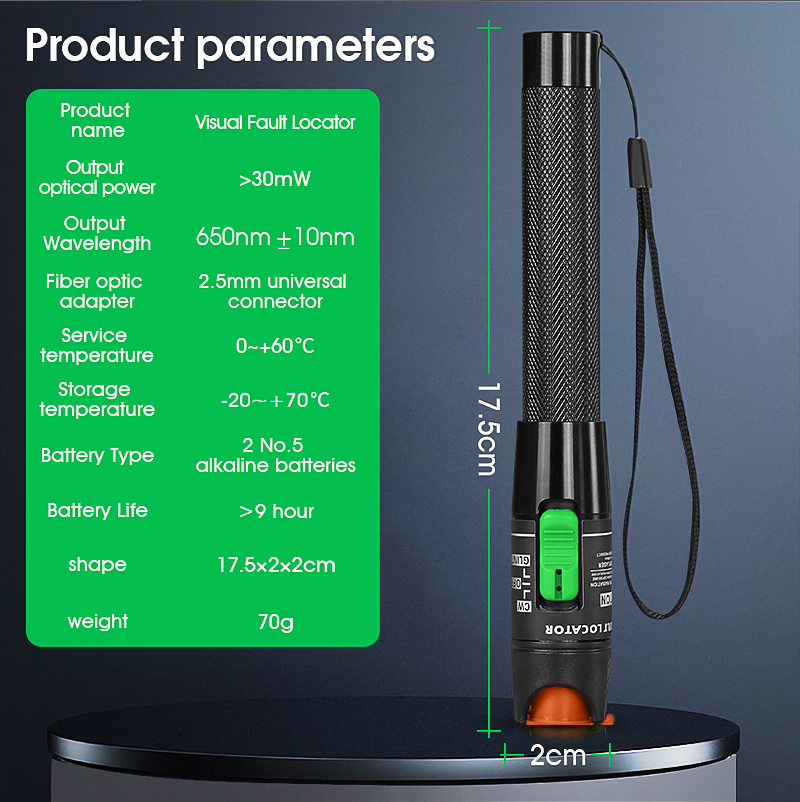

Technical indexes：
| Wavelenth (nm) | 650±10nm |
| Operation Mode | Pulsed (2Hz) and CW |
| Fiber Type | SM/MM |
| Connector | 2.5mm Universal |
| Output power | 5 /10 / 20 / 30 / 50 / 60 mW |
| Working temp | -10 ~ +60 ℃（no dew) |
| Storage Temp | -20 ~ +70 ℃ |
| Power Supply | AA *2 |
| Size(mm) | 175*26 |
Attention:

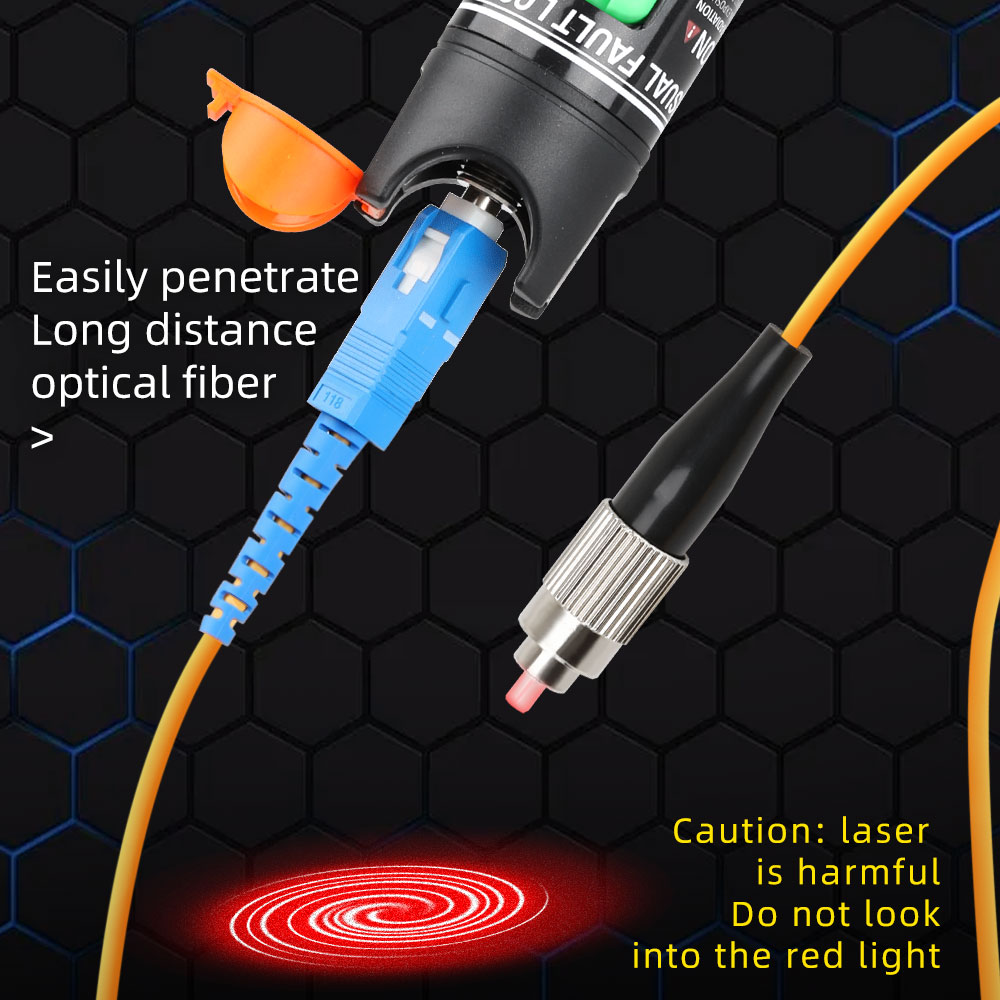

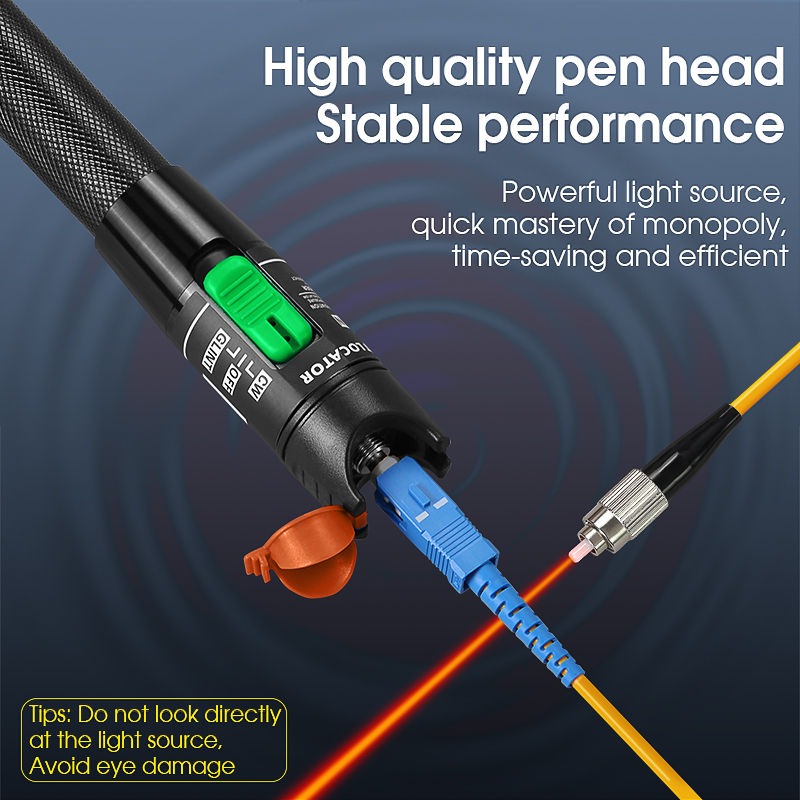

1. When the LD working, do not exposure eyes to laser, which is harmful.
2. The head of fiber must be cleared up while the LED operates.
3. If don't use this light source, pls screw on the dust cap in case the dust falls into.
4. Take out the batteries when you don't use it.
