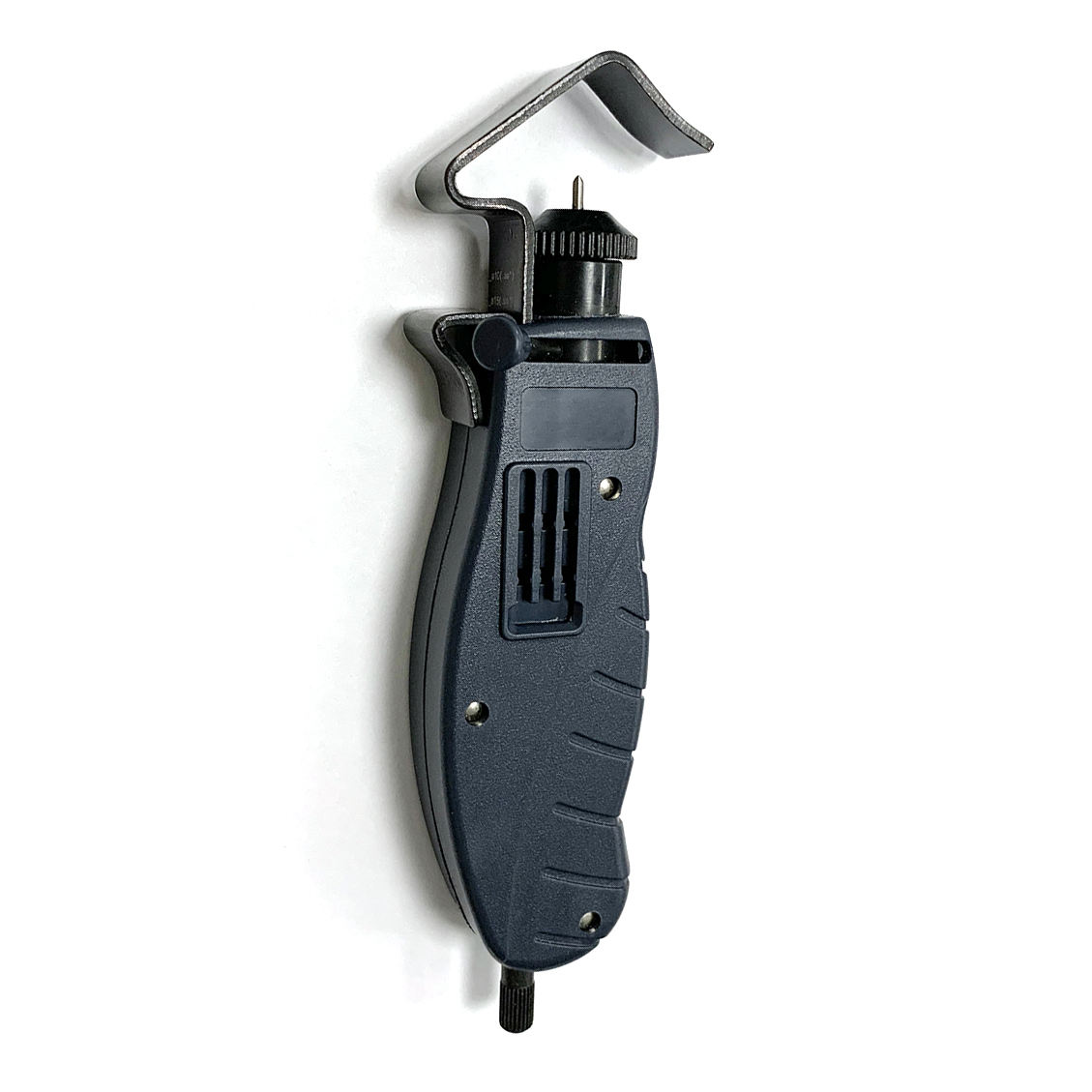

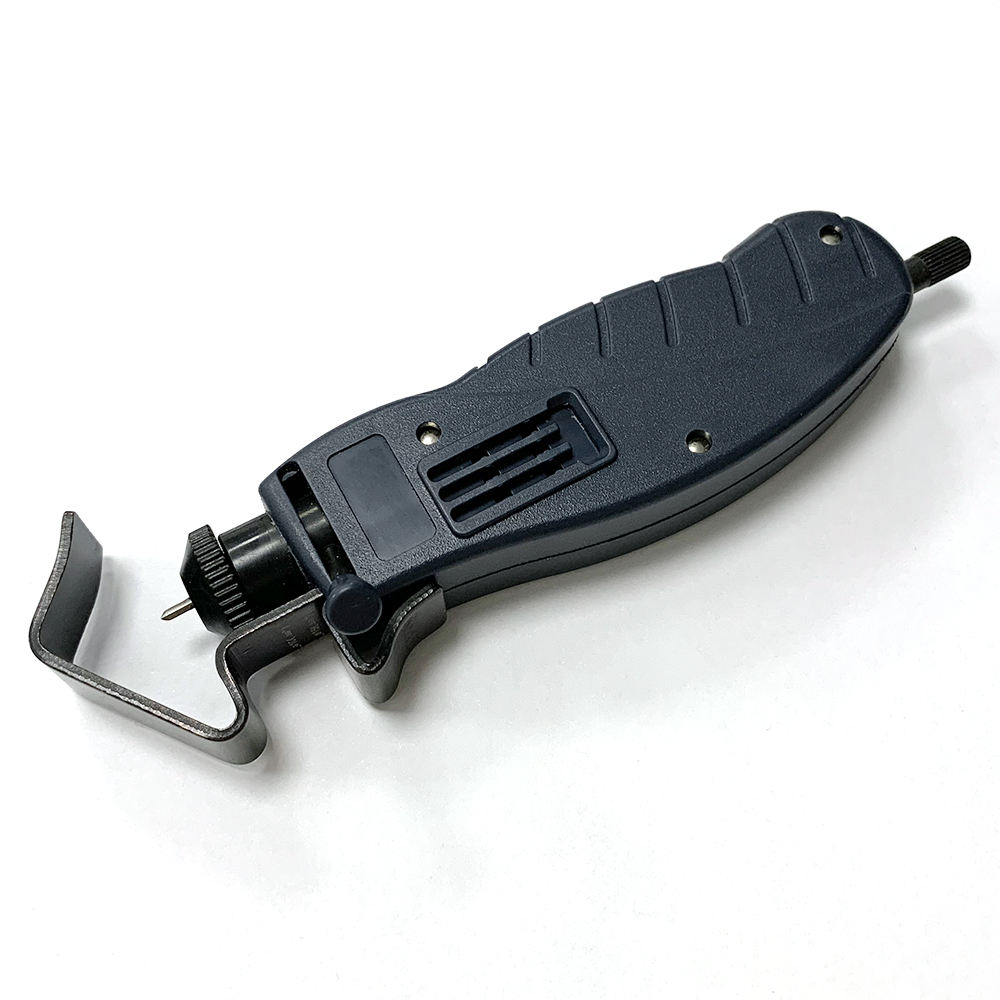

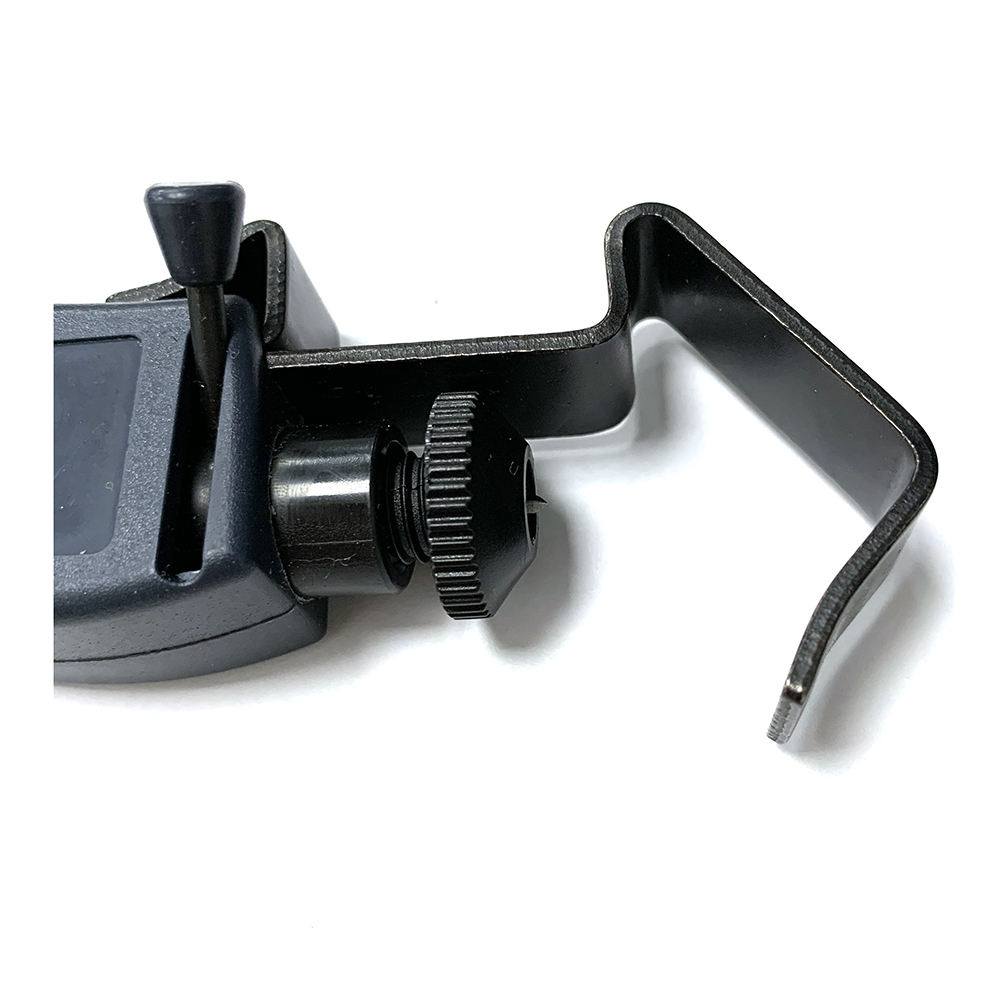

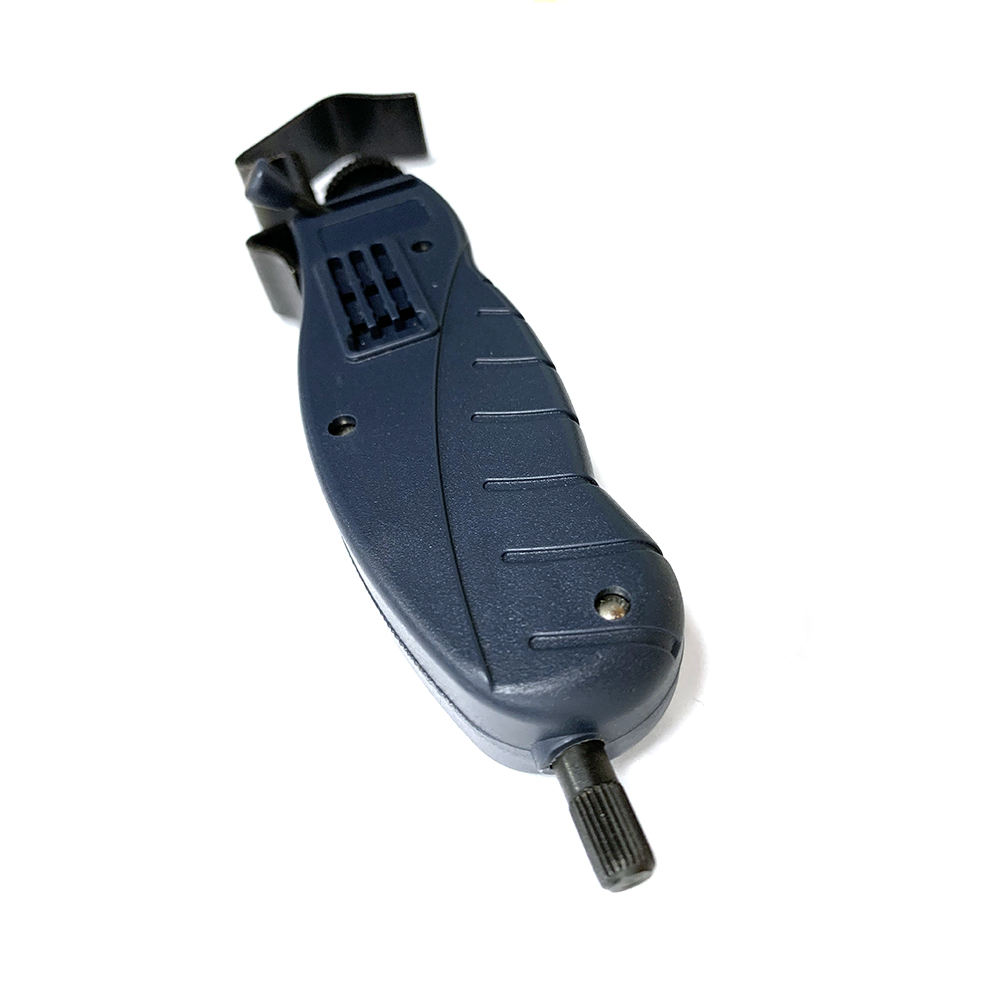

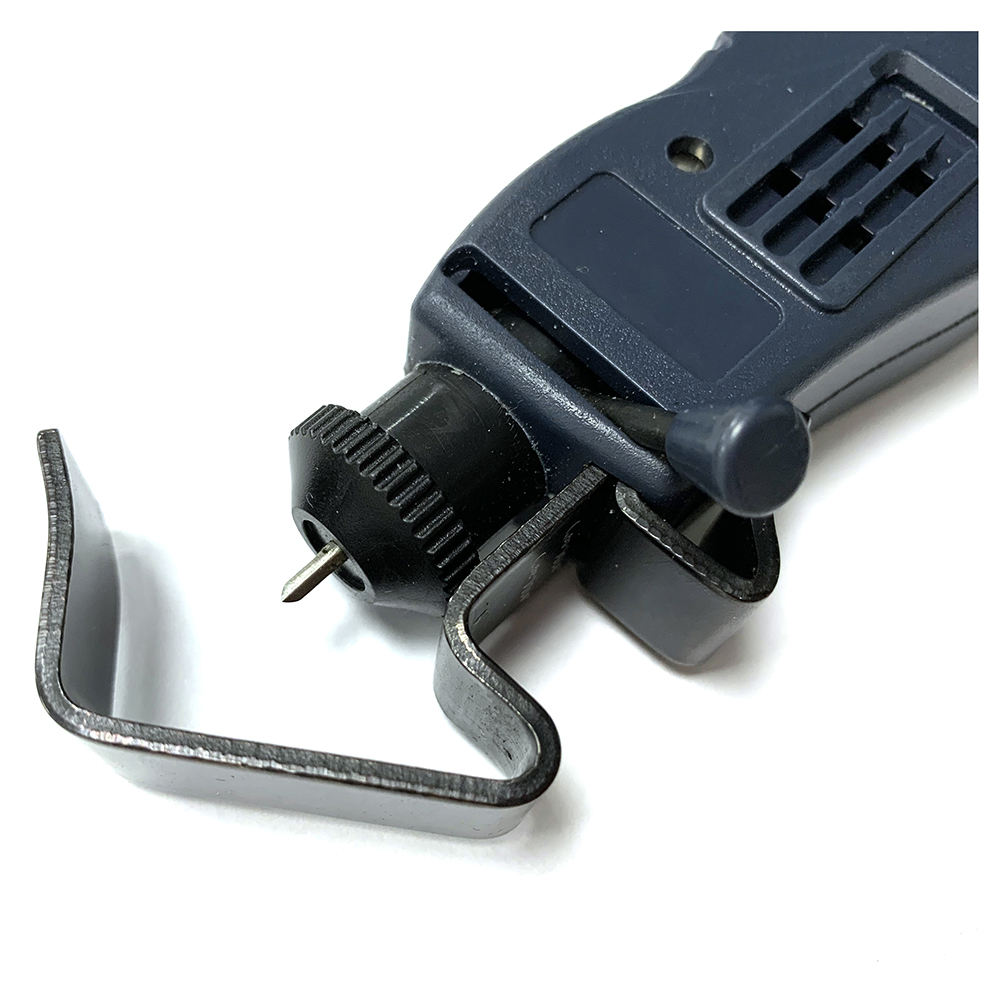

Cable rotary stripping tool
Name | cable rotary stripping tool | |||
Model Number | MT-325 | |||
Color | Black | |||
Functions | Strip for PE, PVC, Rubber of the Sheath out of the Cable | |||
Available Wire | 10mm-25mm | |||
Cutting Track | Horizontal, Vertical, Spiral | |||
OEM | Laser logo /Screen print /Card design | |||
Note | - This Tool is a manually operated cutting device designed for fast, safe and precise jacket removal of PE, PVC and Rubber jackets. - Both end and mid-span stripping made easy. | |||
▶Turn the adjusting out A to get right exposed length of blade, with meet the cable thickness.
▶Turn the adjusting screw B to get a suitable distance of V shape cable holder ( The diameter of cable was indicated on the slitter guide C) or push D to get the correct distance, and then insert cable into the cable holder E. Use less force on operation.
▶Rotate the tool by clockwise direction 2-3 times.
▶Push the shaft to the left end to get a longitudinal cuts. Pull the cable out or use the V shape cutter to remove the slitter insulation.
