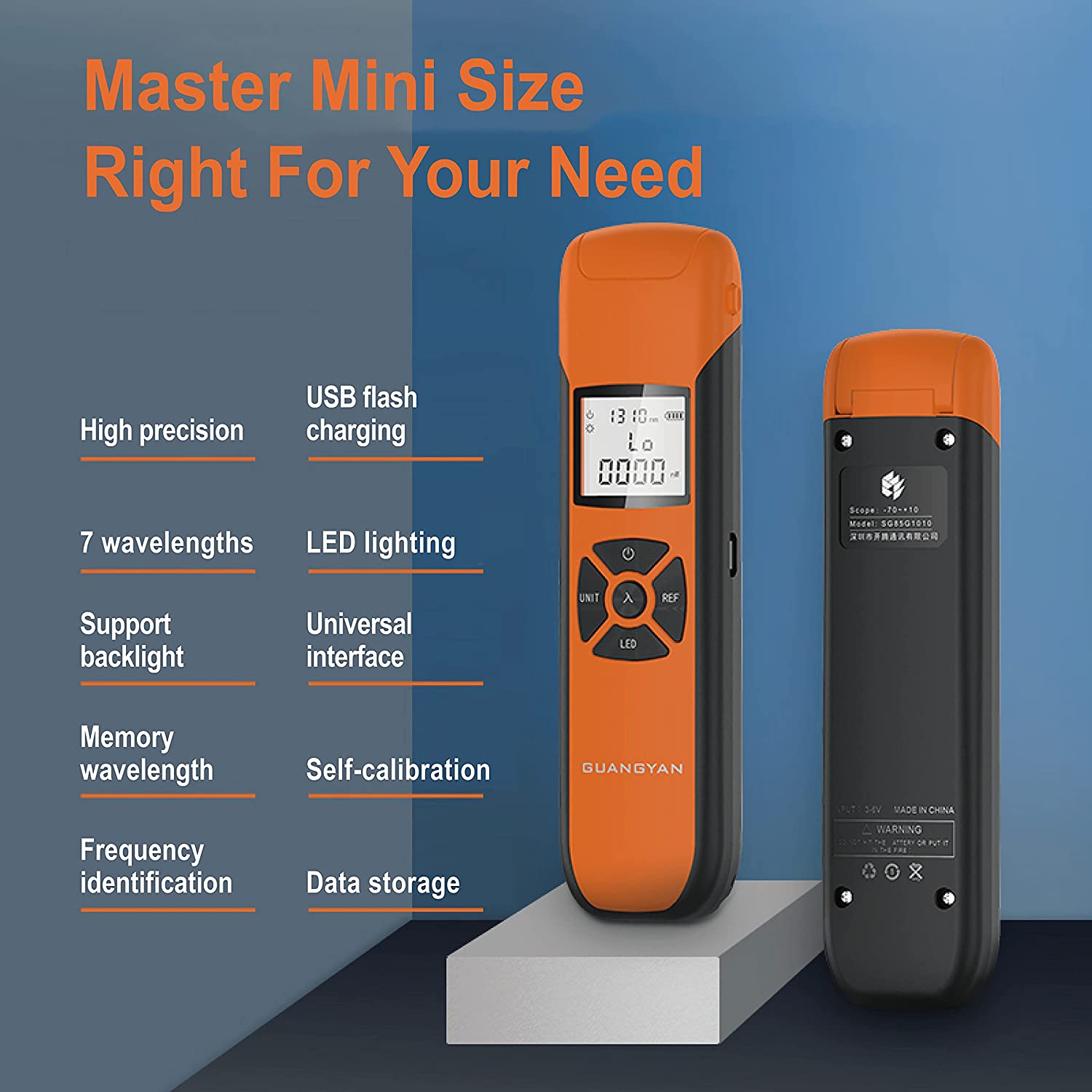

Main Features:
1. Mini Optical power meter to measure fiber loss.
2. With memory wavelength function
3. Able to identify working frequency
4.Support user calibration
5.Support SC, FC, ST interface
6.Support linear (nW) and non-linear indicators (dB)

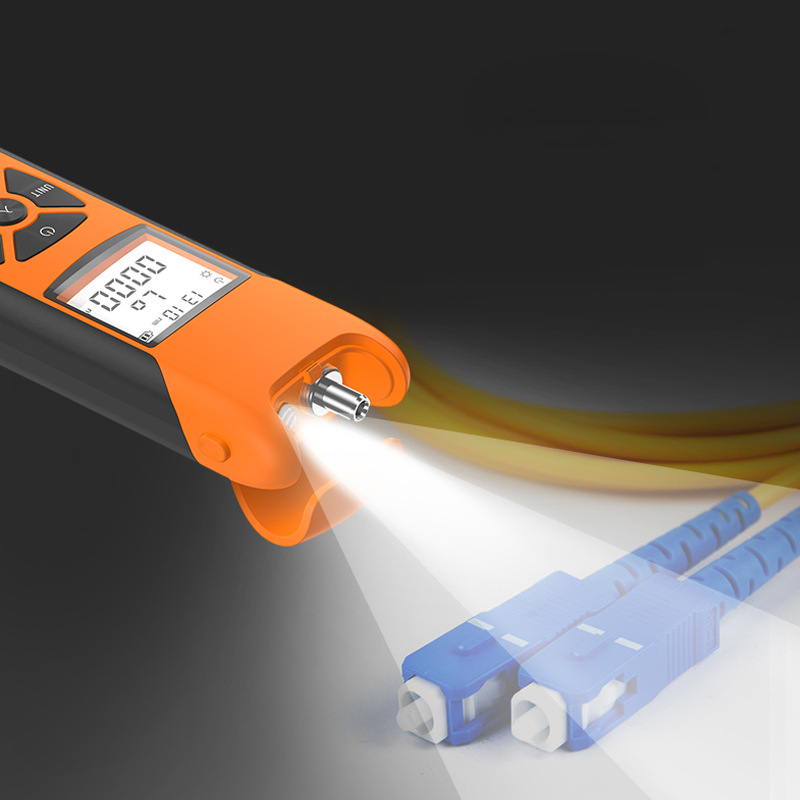

7.Support lighting + backlight switch

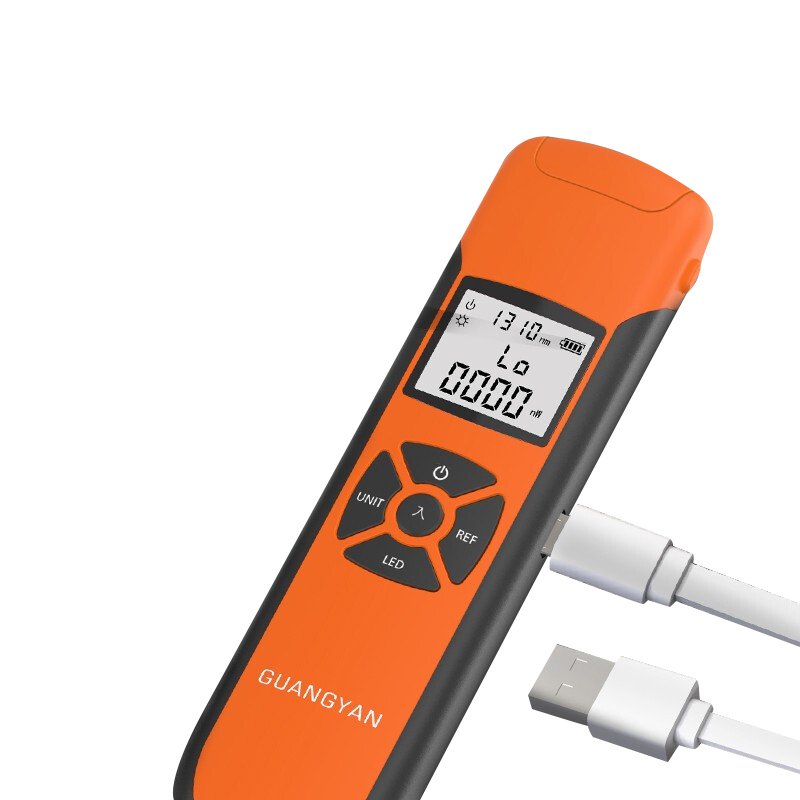

8. Lithium battary for power supply, or external power supply.
Technical Parameters
Wavelength range | 800~1700 |
Probe type | InGaAs |
Measuring range | -70~+3 , -50~+26 (optional) |
Uncertainty | ±5% |

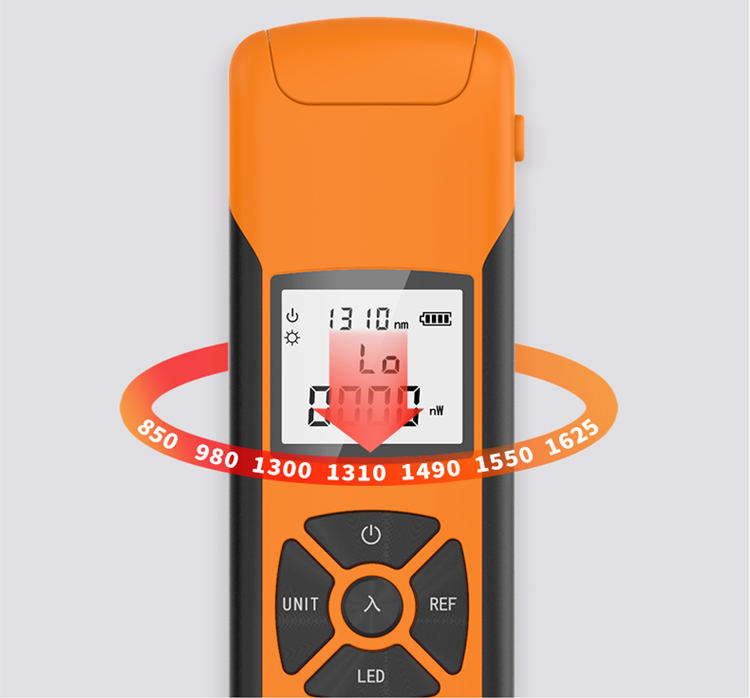

Standard wavelength | 850/980/1300/1310/1425/1550/1625nm |
Display resolution | Linear display: 0.1%, logarithmic display: 0.01dBm |

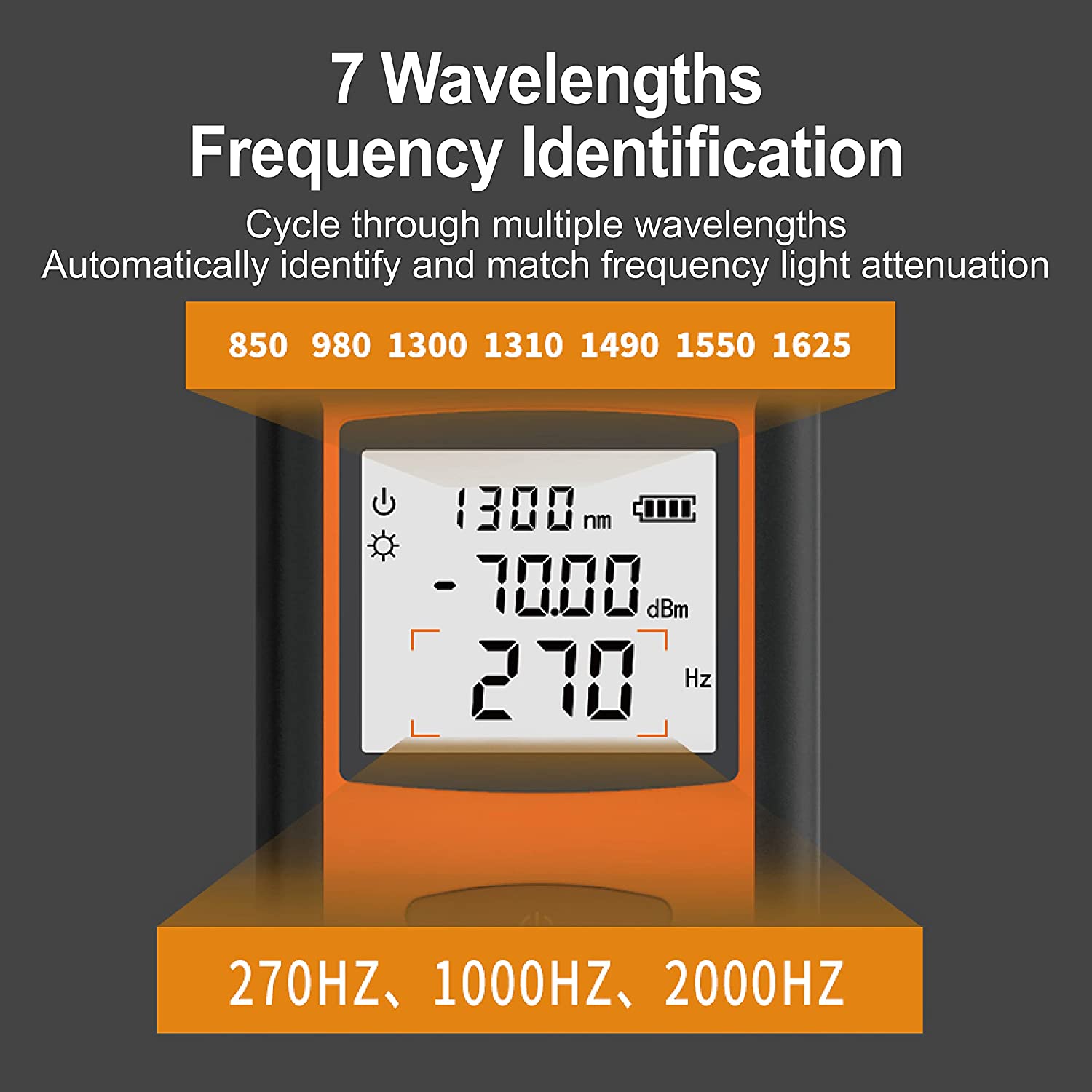

Frequency identification | 0/270/1000/2000Hz |
Quiescent Current | ≤18uA |
Working current | ≤25mA |
Battery life | ≥20h |

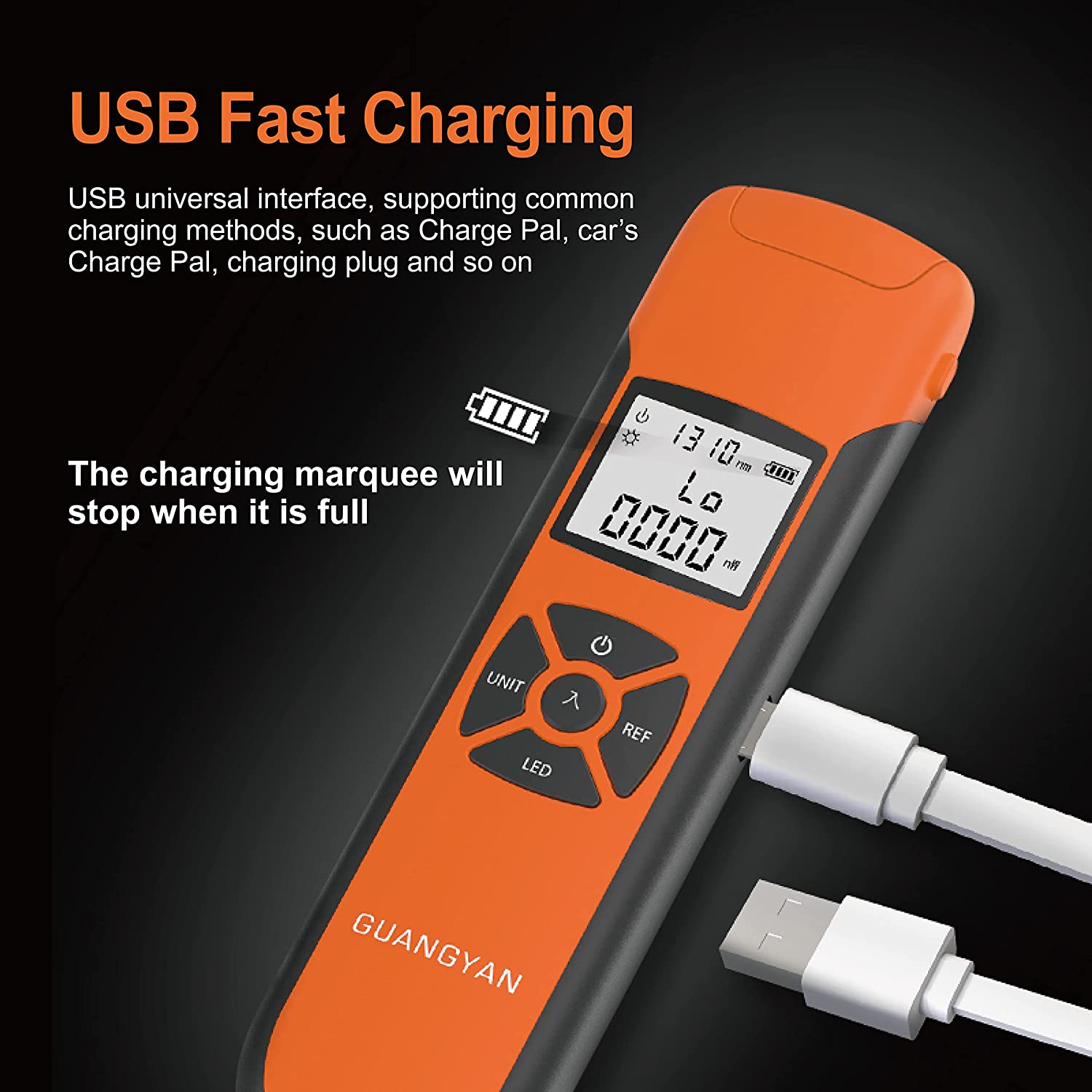

Charging voltage | 5V |
Recharging current | ≤500mA |
Charging time | ≤3h |
Automatic shutdown time(min) | 10 |
Power supply | Rechargeable lithium battery, external input |
Battery | 400mAh |
Instrument size | 37*17*125mm |
Package Size | 56*35*148mm |
net weight | 52g |
