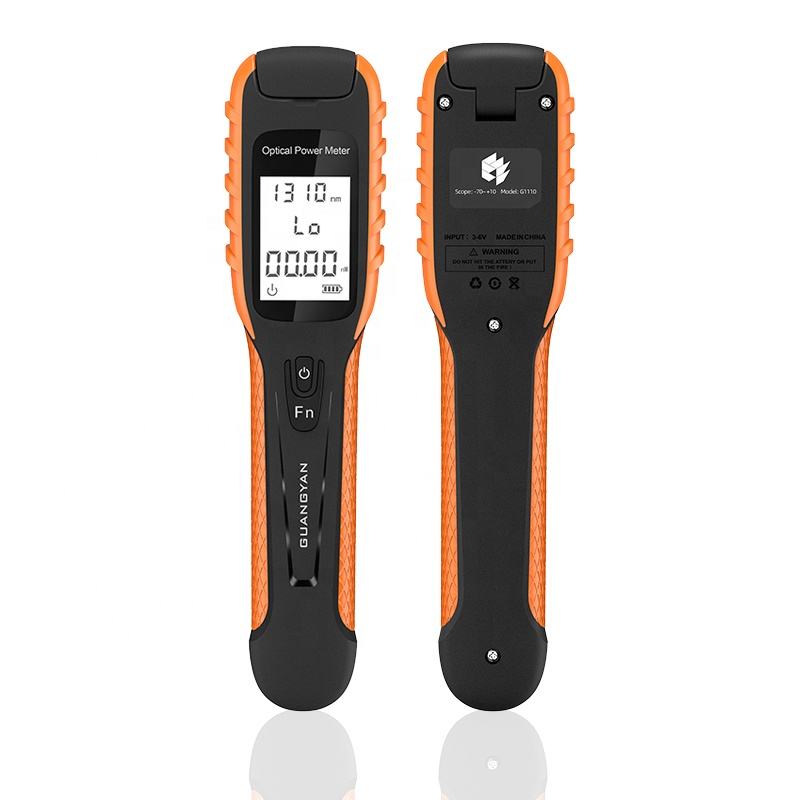

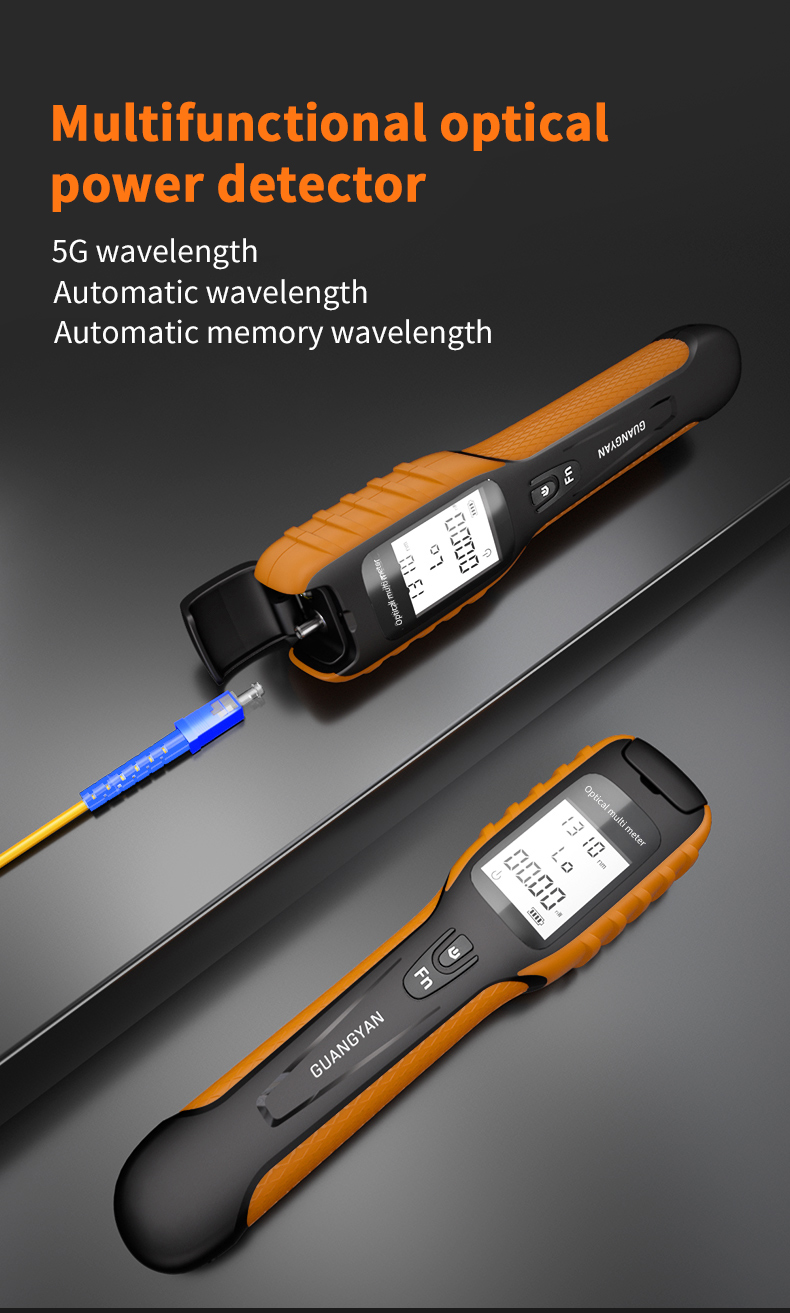

Mini 5G OPM G11 series
MINI POWER METER WITH 850, 980, 1270, 1300, 1310, 1490, 1550,1577,1625nm
| Product Feature: |

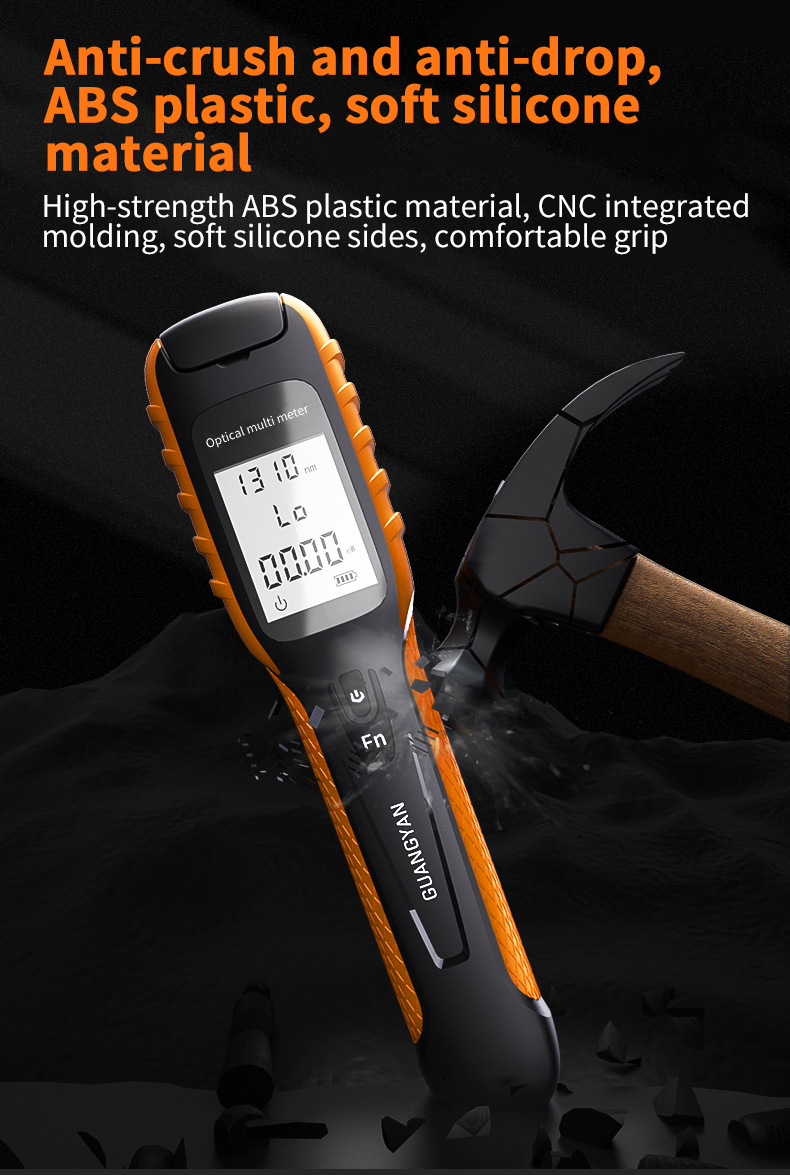

| 1. Use high-quality materials, durable |

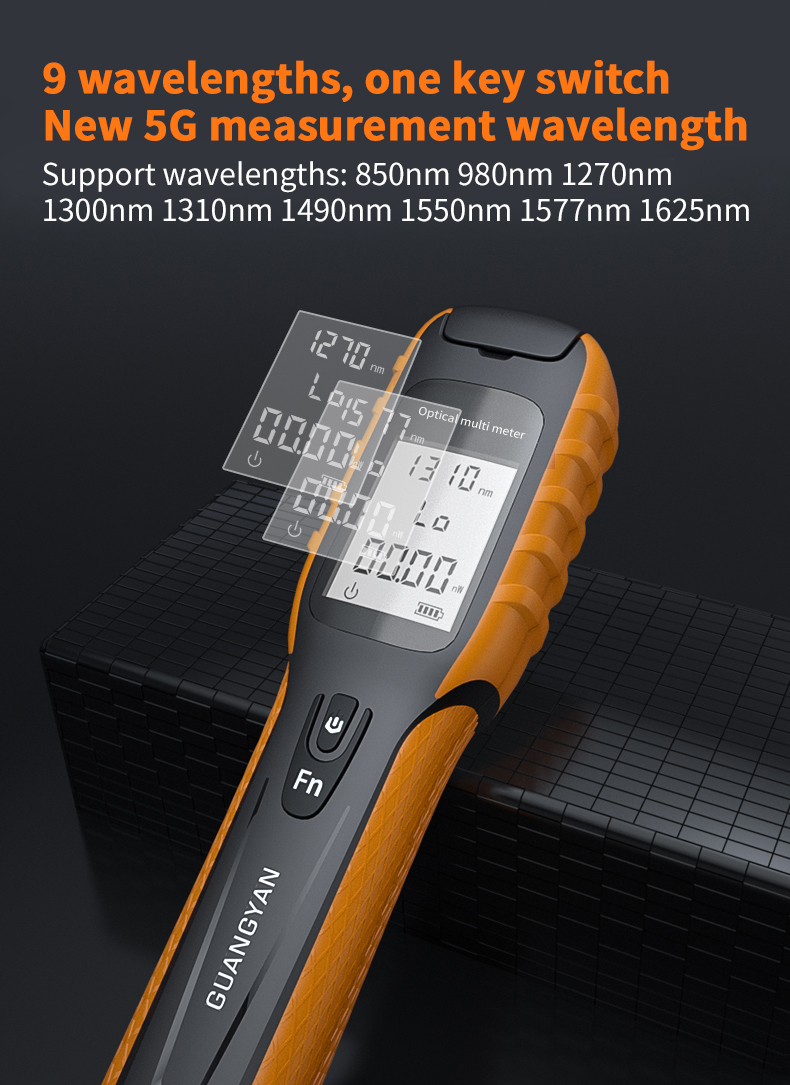

| 2. 9 measuring wavelengths, with 5G measuring wavelength added |
| 3. Built in polymer lithium battery, which can be used for 20 hours at a full charge. When the power is low, it supports plug and play |

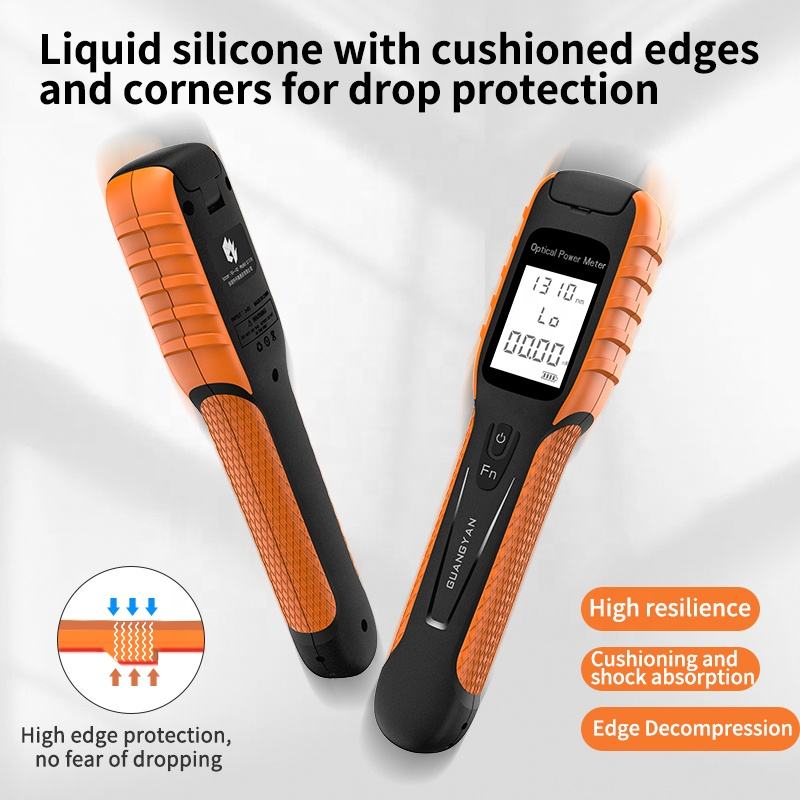

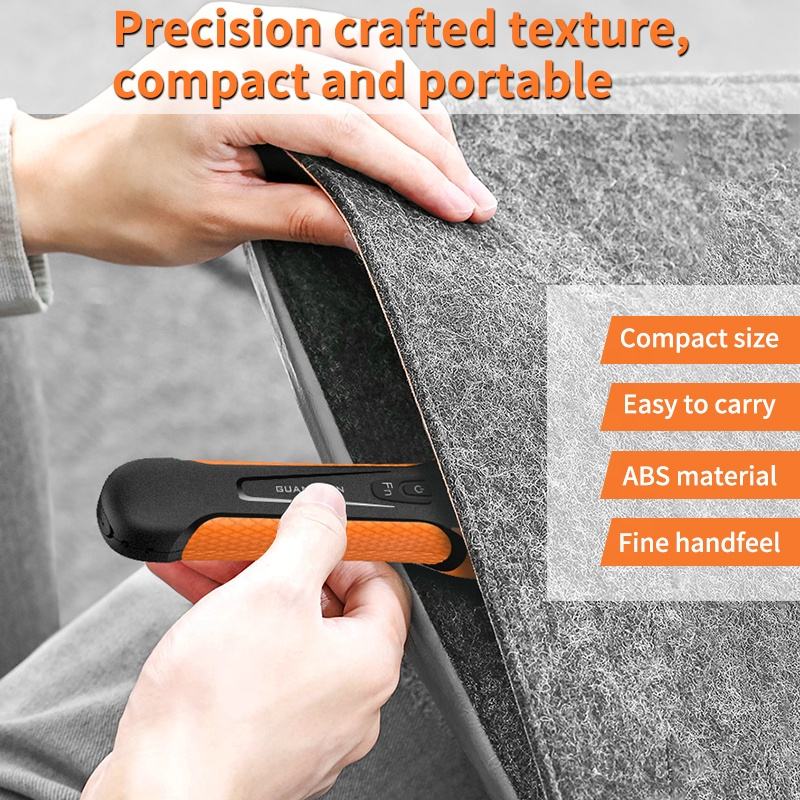

| 4. Light weight, small volume and convenient carrying; Ergonomically designed soft glue material, more comfortable to hold |

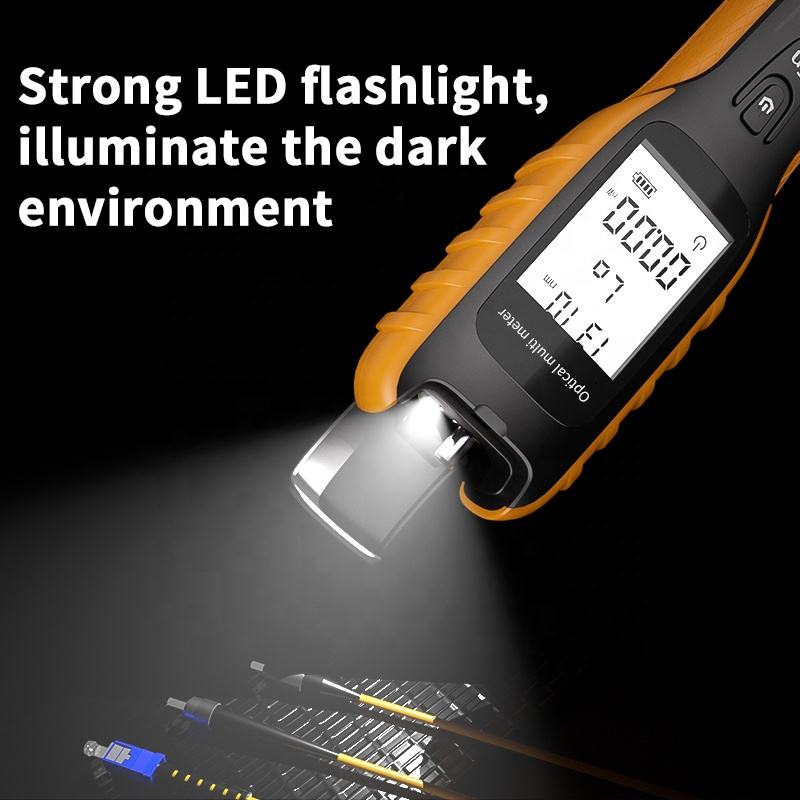

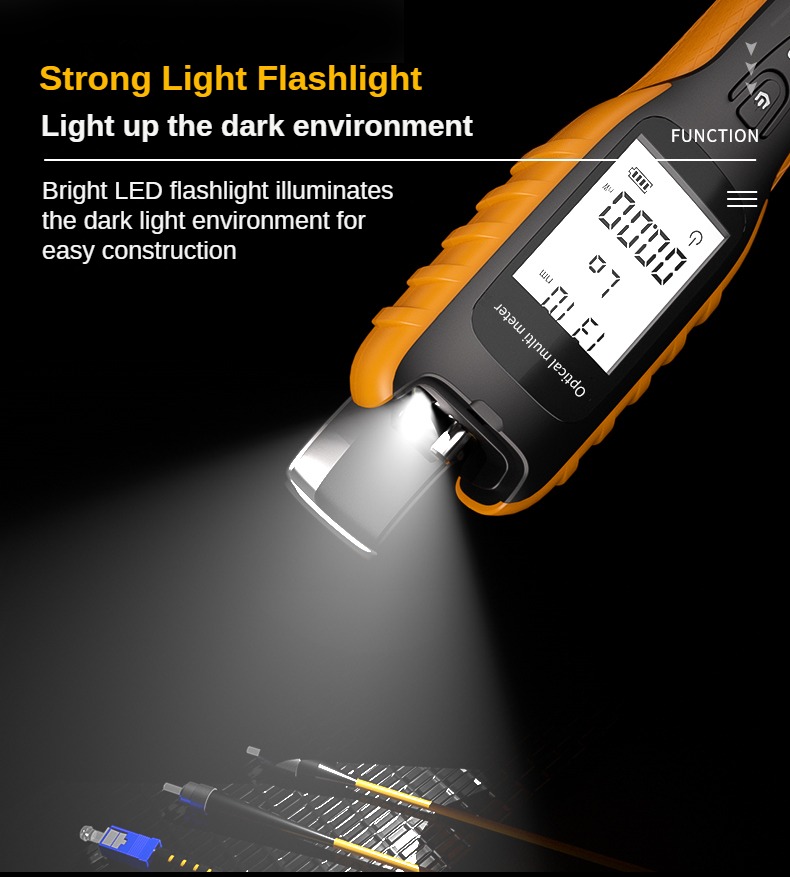

| 5. LED flashlight lighting function, convenient for line checking construction in dark environment |

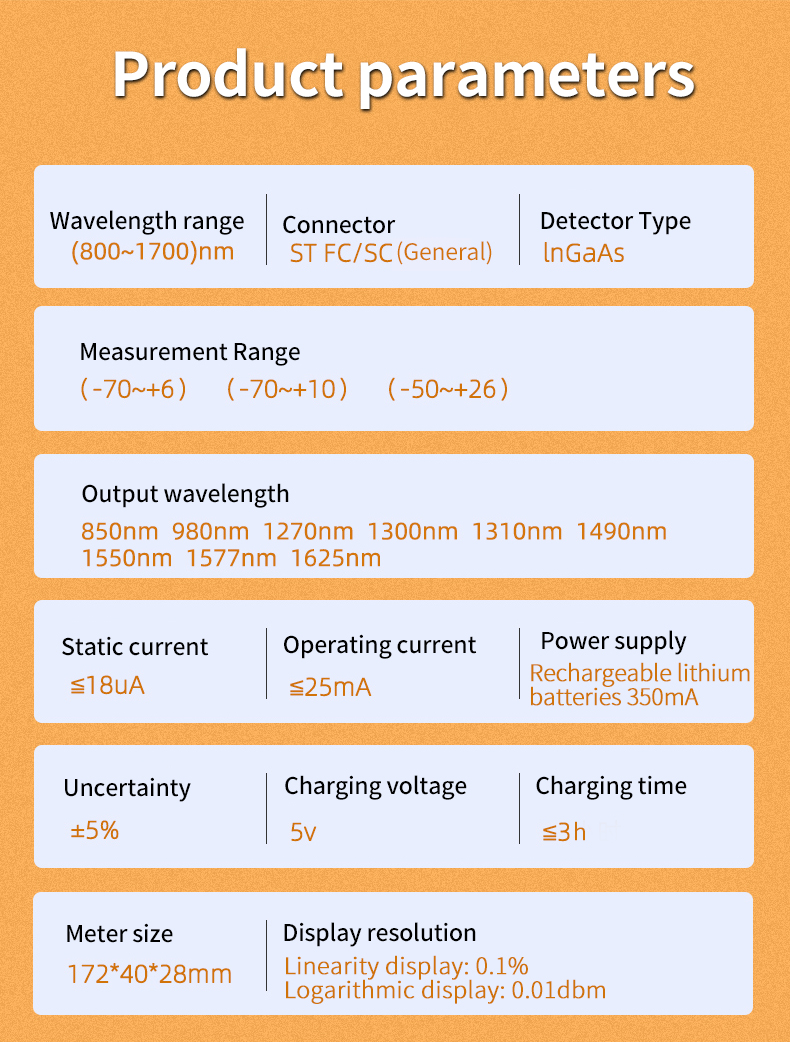

| Parameter: |

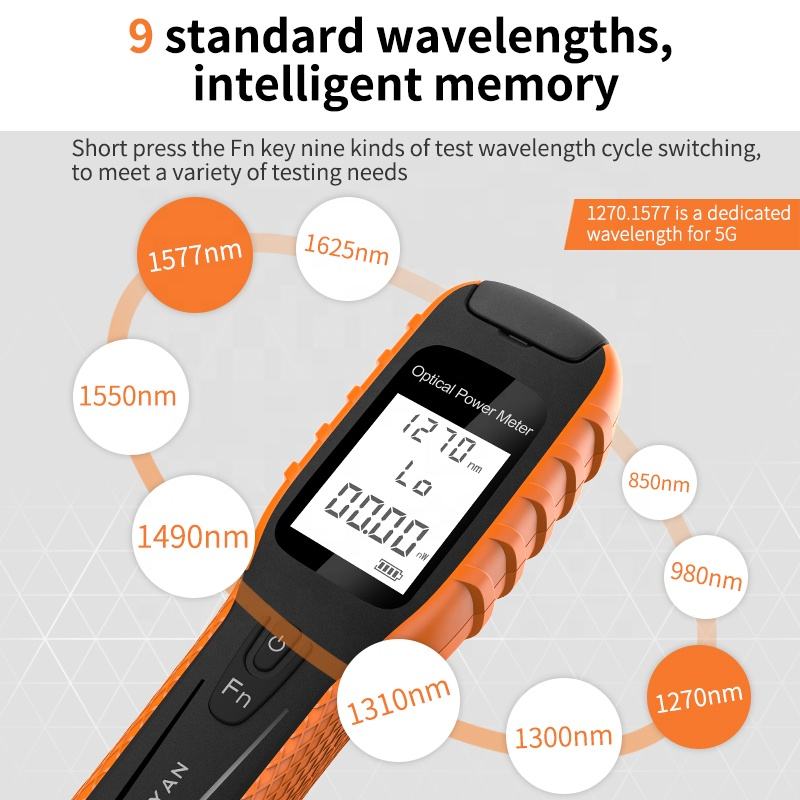

| Standard wavelength: 850/980/1270/1300/1310/1490/1550/1577/1625nm |
| Detector type: InGaas |
| Display resolution: linear display: 0.1% logarithmic display: 0.01dBm |
| Frequency identification: 270Hz, 1000Hz, 2000Hz |
| Endurance time: ≥ 20H |
| Charging voltage/current: 5V/500mA |
| Automatic shutdown time: 10min |
| Lithium battery capacity: 400mAh |
| Package List: |
| OPM * 1 |
| Instructions * 1 |
| Charging cable * 1 |
| Hanging rope * 1 |
