Main Features

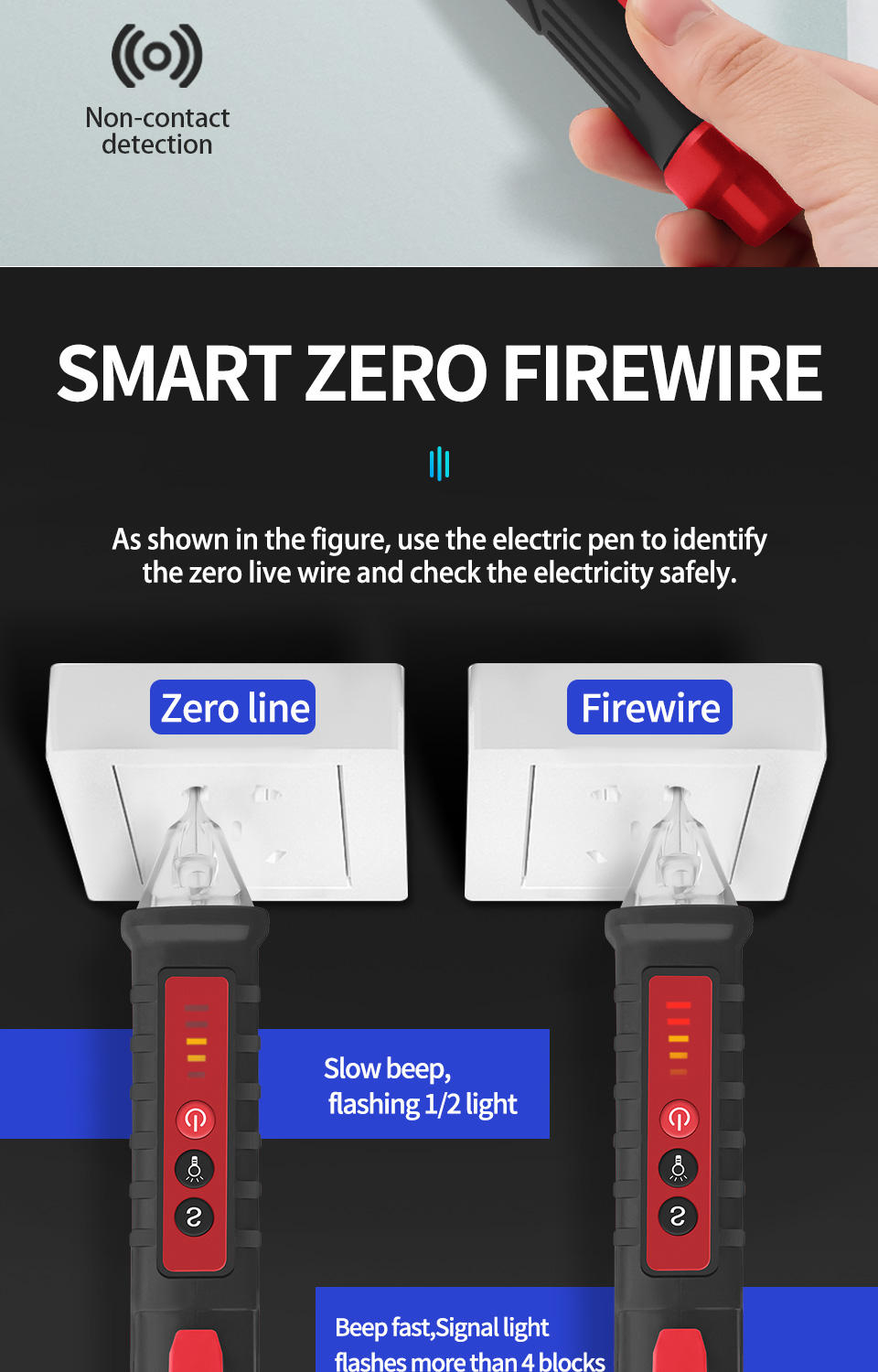

1. Distinguish the Zero Line and the Fire line.
2. Sound and alarm LEDs.
3. Automatic selection of 3 types of sensitivity. (High, Medium, Low)
4. The AC voltage sensitivity is adjustable.
5. Voltage sensitivity is from 12 V to 1000 V AC.
6. Flashlight is equipped and helps work in darkness.
7. Auto power off.
SpecificationDisplay | Singal strength indicators |
Range of voltage detection | high sensitivity:AC12~1000V;Low sensitivity:AC48~1000V |
frequency | 50/60Hz |
Alarm mode | Sound and light alarm |
Probe shape | Prolate shape |
Backlight | Red and green double color backlight |
Live and Neutral | According to backlight color change: green is neutral wire; red is live wire. |
Signal intensity display | Four level sensitivity of bargraph |
Signal intensity indication method | sound from slow to fast;backlight from green to red;bargraph from low to high |
Flashlight | Yes. |
Auto power off | 3 minutes after no opetation. |
Low-battery indication | √ |
Power Supply | 2x1.5V AAA batteries (optional) |
Weight | Approx. 45g |
Size | 155mm x 20mm x 20mm |
Safety rating | EN61010-1,-2-030;EN61326-1, CAT III 1000V |
